What is Plastic Mold: The Core Tool in Modern Manufacturing

Plastic Mold Overview

A plastic mold is a precision tool used for mass-producing plastic components by injecting or compressing molten plastic into a cavity. Cooling and solidification create parts with specific geometries. This technology is vital across automotive, electronics, medical, and packaging industries for cost-effective, high-volume production.

Comparison of Plastic Molding Methods

How Plastic Molds Work

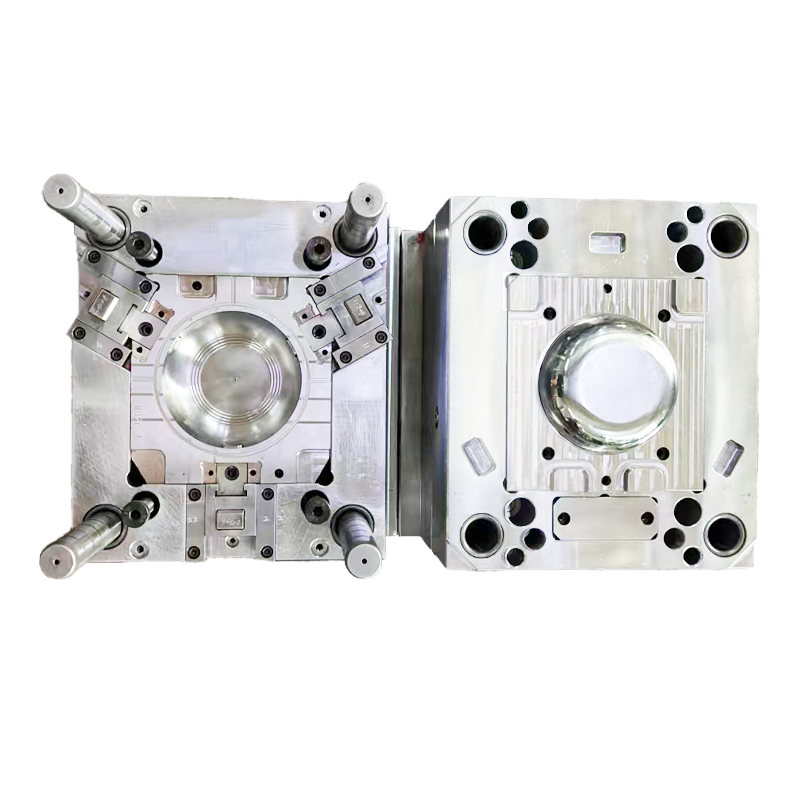

The process involves injecting molten polymers (e.g., PE, ABS, nylon) into steel/aluminum molds under high pressure. The mold splits into moving and fixed halves, with precision determining output quality.

Key Manufacturing Steps

1. Mold Design: Optimize 3D models for demolding and cooling
2. Material Selection: Choose tool steel (P20/H13) or aluminum
3. Fabrication: CNC machining, EDM, and polishing
4. Testing: Adjust temperature/pressure parameters through trials

Key Advantages

• High Efficiency: Cycle times as short as 10 seconds
• Micron-Level Precision: Suitable for gears, connectors
• Low Per-Unit Cost: Economical at scale
• Material Versatility: Supports thermoplastics, biopolymers

Cost-Benefit Analysis

Industry Applications

Automotive

Dashboards, light housings, interior trim

Consumer Electronics

Smartphone casings, charger components

Medical Devices

Syringes, diagnostic equipment

Packaging

Bottle caps, food containers

Choosing the Right Plastic Mold

• Complexity: Micro parts require hardened steel molds
• Material: Corrosive plastics need stainless steel
• Volume: Multi-cavity molds for mass production
• Budget: Aluminum molds for prototypes (1/3 cost of steel)

Innovations & Trends

• Smart Molds: IoT sensors for real-time parameter optimization
• Sustainability: Bio-based material-compatible designs
• 3D Printing: Prototype molds in 72 hours (50% faster)
• Modular Systems: Interchangeable cores reduce SME costs

Latest Updates

• Sep 2023: German auto supplier opens €120M renewable-powered mold facility
• Jan 2024: Desktop Metal launches high-speed polymer mold printing (40% cost reduction)
• Market Forecast: 5.8% CAGR (2023-2030) driven by EVs and healthcare

FAQ

Q1: What is the typical mold lifespan?

A1: Steel molds: 500k-1M cycles. Aluminum: 10k-100k cycles.

Q2: Why are injection molds expensive?

A2: Precision machining accounts for 60-70% of initial costs, but per-unit economics favor high-volume runs.

Q3: Can one mold handle multiple materials?

A3: Yes, if shrinkage rates are compatible (e.g., ABS to polycarbonate).

Plastic molds remain indispensable in manufacturing, enabling innovations from aerospace components to wearable tech. Continuous advancements promise faster, greener, and smarter production ecosystems.
