Advancements and Challenges of Mold Ejector Pins: A Comprehensive Industry Update

author: LiuJianXin

2026-02-27

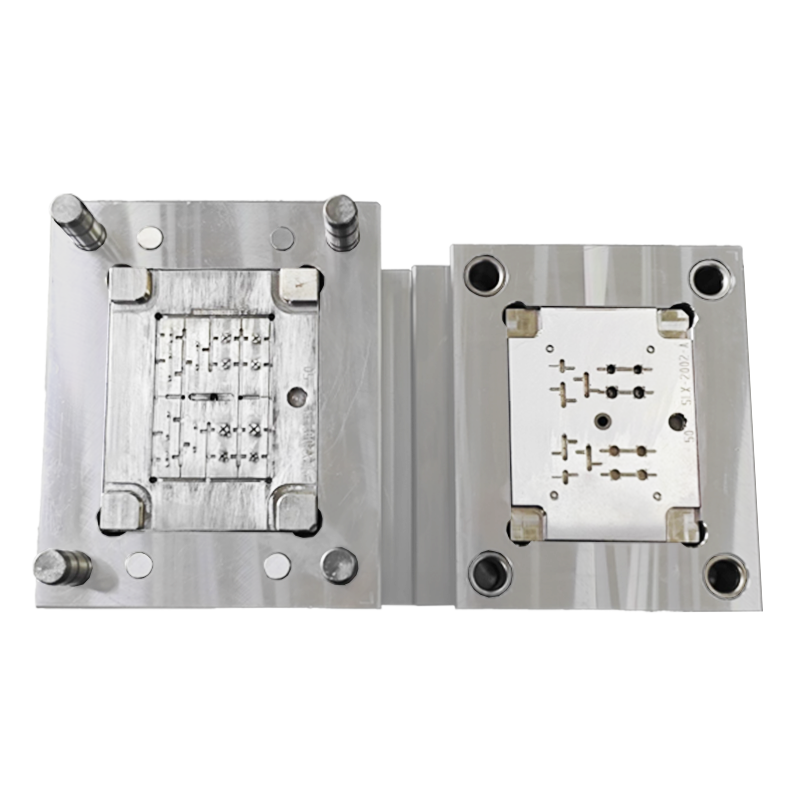

1. Introduction to Mold Ejector Pins

As a core component of the mold ejection system, mold ejector pins play an irreplaceable role in plastic injection molding, die casting, and other manufacturing processes. These precision-engineered cylindrical rods are designed to smoothly and safely eject finished products from mold cavities after the molding cycle is completed, ensuring the integrity of the product and the stability of the production line. With the continuous development of the manufacturing industry, especially the booming demand for high-precision, high-efficiency molding in automotive, electronic, and medical fields, the performance requirements for mold ejector pins are constantly rising. This news will comprehensively analyze the advantages and disadvantages of mold ejector pins, sort out their general parameters, and answer common industry questions to provide a clear reference for practitioners and related enterprises.

2. Core Advantages of Mold Ejector Pins

Mold ejector pins have become the preferred ejection component in the mold industry due to their unique structural design and excellent performance. Their core advantages are mainly reflected in the following aspects:

2.1 High Versatility and Flexible Application

Mold ejector pins come in a variety of types, including straight ejector pins, stepped ejector pins, flat ejector pins, and sleeve ejector pins, which can be customized according to the shape, size, and material of the molded product. They can be installed at any position on the mold that needs ejection, especially suitable for products with complex geometries, deep cavities, or special structural features, and can effectively solve the ejection problem of various difficult-to-eject products.

2.2 Simple Structure and Easy Processing

Compared with other ejection mechanisms (such as push plates and air ejection), mold ejector pins have a simple structure, mature processing technology, and low production cost. Even when high hardness requirements are required, processes such as quenching and grinding can be easily realized. At the same time, the processing of ejector pin holes is also relatively simple, which can quickly meet the precision requirements and reduce the mold manufacturing cycle.

2.3 High Precision and Stable Ejection Performance

High-quality mold ejector pins are processed by precision grinding technology, with strict dimensional tolerance control (usually up to ±0.001mm) and excellent surface finish (Ra≤0.2μm), which can ensure uniform force during the ejection process and avoid product deformation, scratches, or damage. They can maintain stable performance in long-term high-frequency operation, ensuring the consistency of product quality.

2.4 Easy Maintenance and Replacement

Mold ejector pins have good interchangeability. When worn, bent, or damaged, they can be quickly disassembled and replaced without disassembling the entire mold, which greatly reduces maintenance time and production downtime. Regular maintenance (such as cleaning and lubrication) can further extend their service life, reducing the overall production cost of the enterprise.

3. Key Disadvantages and Industry Challenges

While mold ejector pins have obvious advantages, they also face some inherent disadvantages and industry challenges in practical application, which need to be paid attention to by enterprises and practitioners:

3.1 Local Stress Concentration Easily Causes Product Defects

The contact area between the ejector pin and the product is small, which easily leads to local stress concentration during the ejection process. For products with thin walls, small draft angles, or soft materials, it is easy to leave ejector pin marks, indentations, or even cracks on the product surface, affecting the appearance and quality of the product. Especially for high-precision and high-demand products, this defect is difficult to avoid and requires higher precision design and processing.

3.2 Easy Wear and Short Service Life Under Severe Working Conditions

Mold ejector pins work in harsh environments such as high temperature, high pressure, and frequent friction. Under long-term high-frequency operation, the surface of the ejector pin is easily worn, and problems such as bending, galling, or seizure may occur, which shortens its service life. For molds used in high-temperature molding processes or molding fiber-reinforced plastics, the wear speed of ejector pins is faster, requiring frequent replacement.

3.3 High Requirements for Installation and Alignment

The installation accuracy of mold ejector pins directly affects the ejection effect. If the installation is misaligned or the gap between the ejector pin and the ejector pin hole is improper, it will lead to jamming during the ejection process, damage the mold or the product, and even cause the production line to stop运转. This requires professional installation and debugging personnel, increasing the enterprise's labor cost.

3.4 Limitations in Large-Scale and Heavy-Duty Ejection Scenarios

For large-scale integrated die-casting products (such as new energy vehicle rear floor with projection area >2.2m²) or heavy products, a single ejector pin cannot meet the ejection force requirements, and multiple ejector pins need to be used together. However, it is difficult to ensure the synchronization of multiple ejector pins, which may lead to uneven force on the product, resulting in product deformation or mold damage.

4. General Specifications of Mold Ejector Pins (Parameter Table)

The following table shows the general parameters of common mold ejector pins in the industry, which are applicable to most plastic injection molding and die casting scenarios. Specific parameters can be customized according to actual production needs:

Parameter Name	Specification Range	Applicable Scenario	Industry Standard
Diameter (mm)	0.8 - 20	0.8-1.2mm for micro products; 2-8mm for regular products; 10-20mm for large products	ISO 8020, GB/T 4169
Length (mm)	20 - 500	Short length for small molds; long length for deep cavity molds (up to 500mm for large die-casting molds)	ISO 8020, GB/T 4169
Material	SKD61/H13, SKH51/M2, S136	SKD61/H13 for regular scenarios; SKH51/M2 for high-precision/abrasion-resistant scenarios; S136 for corrosion-resistant scenarios	JIS G4404, AISI H13
Hardness (HRC)	48 - 62	48-52 for S136; 52-58 for SKD61/H13; 58-62 for SKH51/M2	ASTM E140
Surface Finish (Ra)	≤0.2μm	High-precision products require Ra≤0.1μm	ISO 4287
Fit Clearance (mm)	0.01 - 0.03	0.01-0.02mm for diameter ≤5mm; 0.02-0.03mm for diameter 5-10mm	ISO 286-1 (H7/f7)
Service Life (Mold Cycles)	50,000 - 300,000	50,000-100,000 for regular materials; 200,000-300,000 for SKH51/M2	Industry Practice Standard

5. Frequently Asked Questions (FAQs) About Mold Ejector Pins

In practical production, practitioners often encounter various problems related to mold ejector pins. The following are the most common questions and professional answers to help solve practical application difficulties:

Q1: What causes the mold ejector pin to break during use, and how to solve it?

A1: The main reasons for ejector pin breakage include: excessive local stress caused by improper layout or small diameter; misalignment during installation leading to jamming; insufficient hardness of the ejector pin material; and excessive lateral force during ejection. The solutions are: optimize the layout of ejector pins to ensure uniform force; select ejector pins with appropriate diameter and high-hardness materials (such as SKH51); ensure accurate installation and alignment; and add guide components to reduce lateral force.

Q2: How to avoid ejector pin marks on the product surface?

A2: Ejector pin marks are mainly caused by local stress concentration and rough surface of the ejector pin. The solutions include: increasing the contact area of the ejector pin (such as using flat ejector pins); polishing the surface of the ejector pin to Ra≤0.1μm; optimizing the ejection speed and force to avoid excessive local pressure; and setting the ejector pin at the non-appearance position of the product as much as possible.

Q3: What is the correct maintenance method for mold ejector pins to extend their service life?

A3: The correct maintenance methods are: clean the ejector pins and ejector pin holes regularly to remove debris and mold release agent residues; apply high-temperature resistant lubricating oil regularly to reduce friction; inspect the ejector pins every 50,000-100,000 mold cycles, and replace them in time if wear, bending, or damage is found; avoid over-tightening the ejector pin plate during installation to prevent deformation.

Q4: How to select the appropriate material for mold ejector pins?

A4: The selection of ejector pin material should be based on the molding material, working temperature, and product precision requirements: ① For regular plastic products (PP, ABS, PC), SKD61/H13 hot work mold steel is preferred, which has excellent comprehensive mechanical properties; ② For high-precision, thin, or fiber-reinforced plastic products, SKH51/M2 high-speed steel is selected, which has better wear resistance and red hardness; ③ For products in contact with corrosive plastics (PVC, POM), S136 stainless steel is selected to ensure corrosion resistance.

Q5: What should I do if the mold ejector pin is stuck and cannot be reset?

A5: The main reasons for jamming are insufficient lubrication, debris accumulation, or thermal expansion caused by high temperature. The solutions are: stop the machine immediately to avoid further damage; use a 250℃ hot air gun to heat the ejector pin plate to unlock it; use a hydraulic press with 3Hz vibration to assist in ejection; clean the ejector pin and ejector pin hole, and apply lubricating oil after cleaning; check whether the fit clearance is appropriate, and adjust it if necessary to avoid re-jamming.

6. Conclusion and Industry Outlook

As a core component of the mold system, mold ejector pins have the advantages of high versatility, simple structure, high precision, and easy maintenance, which are indispensable for the stable operation of the molding production line. However, they also face challenges such as local stress concentration, easy wear, and high installation requirements. With the continuous advancement of manufacturing technology, the future development of mold ejector pins will focus on three directions: first, the development of high-performance materials (such as tungsten copper alloy with low thermal expansion coefficient) to improve wear resistance and service life; second, the application of intelligent design technology (such as AI-assisted layout optimization) to solve the problem of uneven force and synchronization in large-scale ejection scenarios; third, the integration of multi-functional design to realize the integration of ejection and exhaust functions, further improving production efficiency and product quality. It is believed that with the continuous innovation of technology, mold ejector pins will play a more important role in the high-quality development of the manufacturing industry.
