Mold Slanted Ejectors: Innovative Solutions for Undercut Parts - Advantages, Limitations, and Expert Guides

author: LiuJianXin

2026-02-01

Introduction to Mold Slanted Ejectors

Common Models & Specifications of Mold Slanted Ejectors (Table)

Advantages of Mold Slanted Ejectors

Limitations of Mold Slanted Ejectors

Frequently Asked Questions (FAQs) About Mold Slanted Ejectors

Conclusion

1. Introduction to Mold Slanted Ejectors

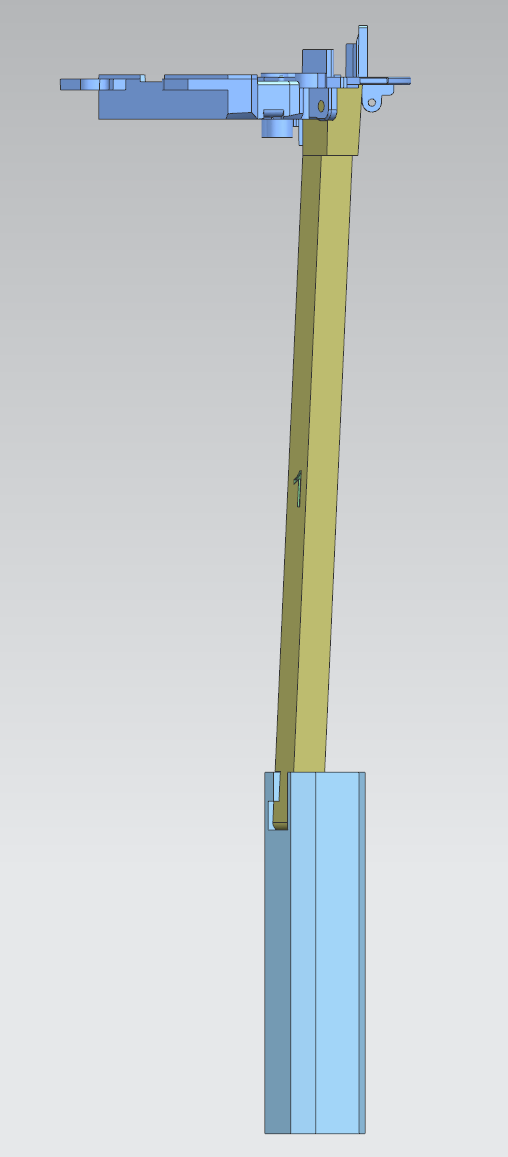

Mold slanted ejectors (also known as angled ejector pins or slant pins) are specialized components in injection molding, engineered to address the challenge of ejecting plastic parts with undercuts, recesses, or protrusions that cannot be removed by standard straight ejector pins. Unlike conventional ejectors that move vertically, slanted ejectors operate at an angle—combining vertical ejection motion with horizontal displacement to disengage the undercut feature from the mold cavity. Widely used in industries such as automotive, consumer electronics, and household appliances, these components are critical for producing complex-shaped parts (e.g., snap-fit connectors, gear housings, and decorative trims) with high precision and structural integrity.

2. Common Models & Specifications of Mold Slanted Ejectors

Model Category	Key Parameters	Typical Ranges/Options
Slant Angle	Inclination angle of the ejector	5° - 25° (standard); custom angles up to 30° for special undercut designs
Material	Tool Steel (SKD61, H13), Stainless Steel (SUS440C), Carbide-Coated Steel	SKD61/H13 for high-temperature molding; SUS440C for corrosion resistance; carbide-coated for extreme wear
Diameter	Shank diameter of the slanted pin	3mm - 16mm (standard); 1.5mm - 20mm (custom sizes)
Effective Length	Working length (from mold base to part contact)	50mm - 300mm (adjustable based on mold height and undercut depth)
Slant Stroke	Horizontal displacement during ejection	5mm - 50mm (varies with undercut size; longer strokes for deep undercuts)
Surface Treatment	Nitriding, Titanium Nitride (TiN), Chrome Plating	Nitriding (HRC 60+) for wear resistance; TiN coating for low friction; chrome plating for corrosion protection
Tip Type	Flat, Rounded, Profiled (matching part geometry)	Flat/rounded for general undercuts; profiled tips for complex, contoured undercut surfaces
Guide Bushing Type	Bronze, PTFE-Lined, Ball Bearing	Bronze for general use; PTFE-lined for low friction; ball bearing for high-precision applications

3. Advantages of Mold Slanted Ejectors

3.1 Enables Production of Complex Undercut Parts

The primary advantage of mold slanted ejectors is their ability to efficiently eject parts with undercuts, which are otherwise impossible to produce with standard ejection systems. By moving at an angle, they disengage the undercut feature horizontally while the mold opens vertically, eliminating the need for secondary operations (e.g., manual trimming or assembly) and reducing production time and costs. This makes them indispensable for manufacturing parts with snap-fit mechanisms, threaded features, or internal/external recesses.

3.2 High Precision and Part Quality

Mold slanted ejectors are designed with tight dimensional tolerances (±0.005mm - ±0.01mm) and precise slant angles, ensuring consistent undercut release and minimal part deformation. High-quality materials and surface treatments (e.g., TiN coating) reduce friction between the ejector and mold, preventing scratches or marks on the part surface. Additionally, their controlled stroke motion ensures uniform force distribution, preserving the part’s structural integrity and aesthetic appeal.

3.3 Space-Saving and Mold Compatibility

Compared to alternative undercut solutions (e.g., core pulls, split molds), slanted ejectors have a compact design that saves mold space. They can be integrated into both small and large molds without significant modifications, making them suitable for multi-cavity molds and high-volume production. Their compatibility with standard injection molding machines further enhances their versatility, as manufacturers do not need to invest in specialized equipment.

3.4 Cost-Effective for High-Volume Production

While the initial design and manufacturing cost of slanted ejectors may be higher than straight pins, they offer long-term cost savings for high-volume production. By eliminating secondary operations and reducing part defects, they improve production efficiency and yield. Their durable construction (e.g., SKD61 tool steel) ensures a long service life (up to 10 million cycles for high-quality models), minimizing replacement costs and downtime.

4. Limitations of Mold Slanted Ejectors

4.1 Design Complexity and Higher Initial Costs

Designing mold slanted ejectors requires precise calculation of slant angles, stroke lengths, and guide mechanisms to avoid interference with other mold components (e.g., cooling channels, slides). This complexity increases mold development time and initial costs, especially for parts with multiple or deep undercuts. Smaller manufacturers may find it challenging to afford the engineering and tooling expenses associated with custom slanted ejector designs.

4.2 Limited Slant Angle and Stroke Range

Mold slanted ejectors have practical limitations on slant angles (typically up to 25°) and stroke lengths (up to 50mm). Exceeding these limits can lead to excessive stress on the ejector pin, causing bending, deformation, or failure. For parts with very deep undercuts (e.g., stroke > 50mm) or steep angles, alternative solutions such as hydraulic core pulls or split molds may be more reliable, albeit more expensive.

4.3 Higher Maintenance Requirements

The angled motion of slanted ejectors creates more friction between the pin and guide bushing compared to straight ejectors. This requires regular lubrication with high-temperature, low-friction lubricants (e.g., molybdenum disulfide) to prevent sticking or premature wear. Additionally, plastic residue can accumulate in the slant mechanism, requiring frequent cleaning to maintain performance. Neglecting maintenance can lead to inconsistent ejection, part defects, or mold damage.

4.4 Risk of Part Damage for Delicate Undercuts

For parts with delicate undercut features (e.g., thin-walled snap-fits or brittle materials like ABS/PC blends), the horizontal force exerted by slanted ejectors can cause cracking, chipping, or deformation. Even with profiled tips, the concentrated pressure on the undercut may exceed the material’s tensile strength, especially if the ejection speed is too high. This requires careful optimization of ejector placement, stroke speed, and material selection to mitigate risks.

5. Frequently Asked Questions (FAQs) About Mold Slanted Ejectors

Q1: How to determine the optimal slant angle for a mold slanted ejector?

A: The slant angle is determined by two key factors: the undercut depth (D) and the available mold opening stroke (S). The optimal angle (θ) can be calculated using the formula: tan(θ) = D / S. Typically, angles between 5° - 15° are preferred for stability—angles above 20° increase the risk of pin bending. For complex undercuts, consult with a mold design engineer to balance angle, stroke, and pin strength.

Q2: What causes mold slanted ejectors to jam, and how to fix it?

A: Jamming is commonly caused by: (1) insufficient lubrication between the pin and guide bushing; (2) plastic residue buildup in the slant mechanism; (3) misalignment of the ejector pin or guide bushing; (4) thermal expansion of the pin due to high molding temperatures. To resolve it: clean the pin and bushing with a mold cleaner, apply a high-temperature lubricant, inspect and realign misaligned components, and ensure proper clearance (0.01mm - 0.02mm) to accommodate thermal expansion.

Q3: Can mold slanted ejectors be used with thermoset plastics? (16pt)

A: Yes, but material selection is critical. Thermoset plastics (e.g., epoxy, phenolic) cure at higher temperatures (150°C - 250°C) and have higher rigidity than thermoplastics. For thermoset molding, use slanted ejectors made of high-temperature tool steel (e.g., H13) with nitrided or TiN coating to resist wear and corrosion. Additionally, ensure the guide bushing is made of heat-resistant materials (e.g., bronze or ceramic) to prevent seizing.

Q4: How to extend the service life of mold slanted ejectors? (16pt)

A: To prolong service life: (1) use high-quality materials (e.g., SKD61, carbide-coated steel) matching the molding application; (2) apply lubrication regularly (after every 1,000 - 5,000 cycles) with a lubricant compatible with the plastic material; (3) clean the ejector and guide bushing periodically to remove residue; (4) avoid overloading the pin with excessive slant angles or stroke lengths; (5) inspect the pin for wear, bending, or deformation every 1 million cycles and replace if necessary.

Q5: What are the alternatives to mold slanted ejectors for undercut parts? (16pt)

A: Common alternatives include: (1) Hydraulic/Pneumatic Core Pulls: Suitable for deep undercuts (stroke > 50mm) but more expensive and require additional hydraulic/pneumatic systems; (2) Split Molds (Two-Piece Cores): Ideal for complex undercuts but increase mold size and cycle time; (3) Collapsible Cores: Used for internal undercuts (e.g., threaded parts) but have complex design and higher maintenance; (4) Manual Undercut Removal: Cost-effective for low-volume production but labor-intensive and prone to part damage.

6. Conclusion

Mold slanted ejectors are innovative and essential components for producing complex injection-molded parts with undercuts, offering unparalleled precision, versatility, and cost-effectiveness in high-volume production. Their ability to eliminate secondary operations and maintain part quality makes them a preferred choice for manufacturers across diverse industries. However, their design complexity, limited angle/stroke range, and higher maintenance requirements demand careful planning, engineering, and ongoing care. By selecting the right model, optimizing design parameters, and implementing proper maintenance practices, manufacturers can maximize the performance and lifespan of mold slanted ejectors, overcoming undercut challenges and achieving efficient, high-quality production. As injection molding technology advances, future innovations in materials (e.g., ceramic-reinforced steels) and design (e.g., integrated sensors for real-time wear monitoring) are expected to address current limitations and expand the application scope of mold slanted ejectors.
