Don't miss out! Unlock the secrets of the component parts of plastic molds in this article.
author: mia
2025-05-31

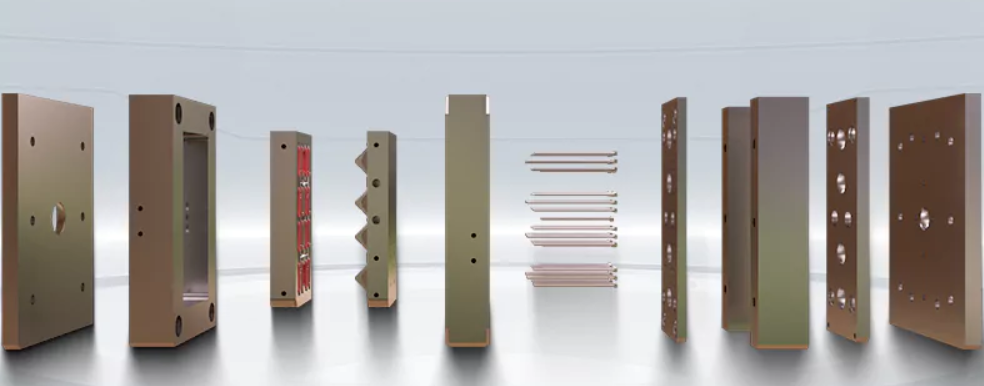

Plastic mold parts are crucial components in plastic molds. They ensure accurate shaping, efficient production, and are vital for creating diverse plastic products.
Table of Contents
1. Introduction to Plastic Mold Components
Plastic molds are the backbone of modern manufacturing, enabling the production of everything from tiny electronic components to large automotive parts. At the core of their functionality lie plastic mold parts, each designed to perform specific tasks in the molding process. Understanding these components is crucial for optimizing mold performance, reducing production costs, and enhancing part quality. In this article, we'll dive into the key parts of plastic molds, their roles, and how they interact to create precision products.
2. Core Components of Plastic Molds
2.1 Core and Cavity: The Heart of Molding
The core and cavity are the most critical parts of a plastic mold. The cavity forms the outer surface of the molded part, while the core defines the inner surface or hollow areas. These components are typically made from high-grade steel or aluminum, precision-machined to tight tolerances.
- Role: Together, they create the shape of the final product.
- Material Selection: Steel offers durability for high-volume production, while aluminum provides better heat conductivity for faster cycle times.
2.2 Ejection System: Ensuring Smooth Part Release
After cooling, the molded part must be removed from the mold. The ejection system achieves this through components like ejector pins, blades, or sleeves. These parts push the part out of the core or cavity without causing damage.
- Design Consideration: Proper ejection balance is essential to avoid warping or surface marks on the part.
- Maintenance Tip: Regular lubrication prevents wear and tear on ejection components.
2.3 Gating System: Controlling Material Flow
The gating system directs the molten plastic into the mold cavity. It includes the sprue (the main inlet), runners (channels), and gates (the final entry points into the cavity).
- Gate Types: Common options include edge gates, point gates, and hot runners. Hot runners reduce material waste by keeping the plastic molten, but they are more expensive to install.
2.4 Cooling System: Optimizing Cycle Time
Efficient cooling is key to reducing production cycle times. The cooling system uses drilled channels or baffle plates to circulate water or coolant around the core and cavity.
- Design Impact: Poor cooling can lead to uneven shrinkage, warping, or extended cycle times.
3. Parameter Comparison Table for Key Components
|
Component
|
Material Options
|
Typical Tolerance
|
Temperature Resistance
|
Cost (Relative)
|
|
Core/Cavity
|
Steel, Aluminum, Tool Steel
|
±0.001mm
|
150°C–300°C
|
High
|
|
Ejection Pins
|
Carbon Steel, Stainless Steel
|
±0.01mm
|
80°C–150°C
|
Medium
|
|
Hot Runner Nozzles
|
Heat-Resistant Alloy
|
±0.005mm
|
250°C–400°C
|
Very High
|
|
Cooling Channels
|
Copper, Steel
|
±0.1mm
|
50°C–120°C
|
Low
|
4. Advantages and Disadvantages of Common Component Designs
|
Component
|
Design Type
|
Advantages
|
Disadvantages
|
|
Gating System
|
Hot Runner
|
Reduces material waste, consistent flow
|
High initial cost, complex maintenance
|
|
Cold Runner
|
Simple design, lower cost
|
Produces scrap, slower cycle times
|
|
|
Ejection System
|
Ejector Pins
|
Versatile, widely used
|
Risk of pin marks on part surface
|
|
Ejector Blades
|
Distributes force evenly, suitable for thin parts
|
More complex to install
|
|
|
Cooling System
|
Drilled Channels
|
Cost-effective, easy to design
|
Limited cooling efficiency
|
|
Baffle Plates
|
Improved heat transfer
|
Higher manufacturing complexity
|
5. Expert Insights: What Industry Leaders Say
According to Dr. Maria Gonzalez, a leading plastic molding engineer at Global Molding Solutions:"Neglecting the design of core and cavity surfaces is a common mistake. Surface finish and hardness directly impact part quality and mold lifespan. Always invest in proper heat treatment for high-wear components."
John Carter, CEO of Carter Mold Technologies, adds:"The cooling system is where manufacturers can gain a competitive edge. Advanced simulation tools now allow us to optimize channel layouts, reducing cycle times by up to 20% without compromising part integrity."
6. FAQs About Plastic Mold Parts
Q1: How often should mold components be replaced?
A: It depends on usage and material. High-volume production with abrasive resins may require core/cavity replacement after 100,000 cycles, while ejection pins might last 500,000 cycles with proper maintenance.
Q2: Can I modify an existing mold's gating system?
A: Yes, but modifications require careful analysis. Changing gate location can affect part shrinkage and warping, so always consult a mold engineer and use flow simulation software.
Q3: What's the best material for low-volume production molds?
A: Aluminum is ideal for low-volume runs due to its lower cost and faster machining time, though it wears faster than steel in high-temperature or abrasive applications.
Q4: How do I prevent ejection system failures?
A: Regularly inspect for wear, ensure proper alignment, and use high-quality lubricants. Under-lubrication or over-lubrication can both cause issues like sticking or contamination.
7. Conclusion: Mastering Mold Components for Better Performance
Understanding the component parts of plastic molds is essential for anyone involved in plastic manufacturing. From the precision of the core and cavity to the efficiency of the cooling system, each part plays a vital role in producing high-quality products cost-effectively. By optimizing component design, material selection, and maintenance, manufacturers can unlock significant improvements in cycle times, part quality, and overall profitability.
Don’t miss out on the opportunity to refine your mold design—start by evaluating your current components against the insights and comparisons in this guide. Ready to take your molding process to the next level? Share your questions or experiences in the comments below!
