The Perfect Union of Metal and Plastic: Insert Molding Technology Unlocks New Possibilities for Smart Hardware Design

author: mia

2025-05-19

Plastic insert molding process precisely positions metal/plastic inserts and molds them with molten resin, achieving high-strength connections and functional integration for precision components in electronics, automotive, and other industries.

Introduction: The Material Revolution in Smart Hardware Design
Insert Molding Technology: The Seamless Fusion of Metal and Plastic
- Technical Principles and Core Advantages
- Breakthrough Innovations in Materials Science
Innovative Breakthroughs: Redefining Manufacturing Boundaries
- Structural Integration and Lightweight Design
- Functional Complexity and Performance Optimization
Development Trends: The Future Vane of Smart Hardware Manufacturing
- Deep Integration of Automation and Industry 4.0
- Evolution of Multi-Material Co-Molding Technology
- Practices in Environmental Protection and Sustainability
Application Scenarios: From Consumer Electronics to High-End Manufacturing
- Consumer Electronics: Reliability and Design Freedom
- Automotive Electronics: High-Performance Solutions
- Medical Devices: Precision and Biocompatibility
- Aerospace & Industrial Automation: Lightweighting and Extreme Environments
Future Outlook: Opening a New Era of Smart Hardware Design
Conclusion

1. Introduction: The Material Revolution in Smart Hardware Design

In the realm of smart hardware, the interplay between metal’s rigidity and plastic’s flexibility has long posed a design paradox. Traditional methods like welding or adhesive bonding not only add complexity and cost but also compromise structural integrity due to thermal expansion mismatches. Insert molding technology has emerged as a game-changer, enabling molecular-level bonding between metal inserts and plastic matrices. This innovation transcends material limitations, offering designers unprecedented freedom to create components that are both robust and lightweight. By eliminating secondary assembly steps, insert molding reduces production time by 40% while enhancing product reliability through integrated stress distribution .

2. Insert Molding Technology: The Seamless Fusion of Metal and Plastic

Technical Principles and Core Advantages

Insert molding operates through a three-phase process:

Insert Preparation: Metal components undergo surface treatments such as roughening or PVD coating to enhance mechanical interlocking with plastic. For instance, brass inserts used in automotive connectors are often micro-etched to increase surface area by 30%, improving bond strength .
Precision Integration: Inserts are positioned in the mold cavity with ±0.01mm accuracy using robotic systems, ensuring alignment during the injection phase. Automated loading systems reduce cycle times by 50% compared to manual methods .
Material Synergy: Molten plastic (e.g., PA66-GF30) is injected at 150–200 MPa, encapsulating the insert. The cooling phase creates a metallurgical bond, with shear strength exceeding 20 MPa in optimized designs .

Key advantages include:

Weight Reduction: By replacing 70% of metal with plastic, smartphone frames achieve 20% weight savings without compromising drop resistance .
Cost Efficiency: Eliminating post-molding machining and assembly reduces production costs by 30–50% .
Multi-Functional Integration: Metal inserts can simultaneously provide EMI shielding, thermal dissipation, and structural support, as seen in 5G antenna modules where copper inserts improve signal efficiency by 15% .

Breakthrough Innovations in Materials Science

Advancements in materials have expanded insert molding’s capabilities:

High-Performance Metals: Titanium alloys (e.g., Ti-6Al-4V) are now used in medical implants, offering biocompatibility and strength-to-weight ratios 50% higher than stainless steel .
Engineered Polymers: PEEK (Polyetheretherketone) combined with carbon fiber inserts withstands temperatures up to 260°C, making them ideal for aerospace engine components .
Nanocomposites: Carbon nanotube-reinforced plastics (CNT-PP) exhibit 40% higher thermal conductivity than traditional materials, critical for LED heat sinks .

3. Innovative Breakthroughs: Redefining Manufacturing Boundaries

Structural Integration and Lightweight Design

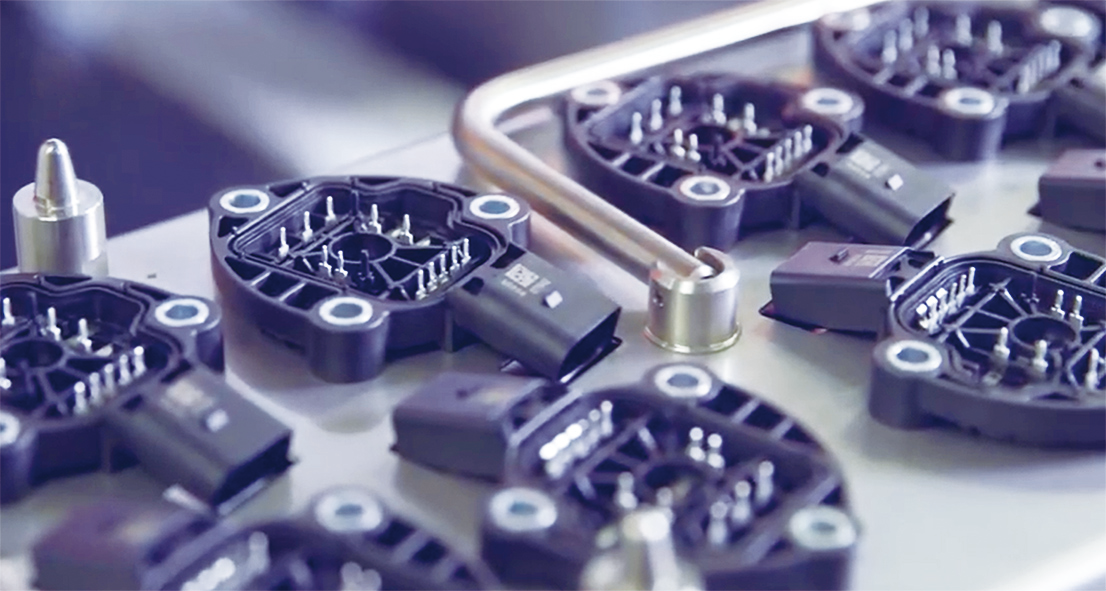

Insert molding enables multi-component consolidation, reducing part counts by 60% in applications like automotive sensor modules. For example, a single insert-molded housing integrates metal terminals, plastic insulation, and a silicone gasket, replacing 12 discrete parts . This integration also enhances vibration resistance—tested to 10G RMS at 20–2000 Hz in automotive environments .

Functional Complexity and Performance Optimization

By combining materials, insert molding achieves multi-physics integration:

Thermal Management: In electric vehicle (EV) battery packs, aluminum inserts with micro-channel cooling embedded in PPS plastic reduce thermal resistance by 25%, ensuring consistent cell temperatures .
Biomedical Applications: Medical-grade POM (Delrin) with titanium inserts for orthopedic screws provides osseointegration while maintaining 800 MPa tensile strength .
Electromagnetic Shielding: A smartphone’s metal mid-frame, overmolded with ABS, achieves -60 dB shielding effectiveness across 1–6 GHz frequency bands .

4. Development Trends: The Future Vane of Smart Hardware Manufacturing

Deep Integration of Automation and Industry 4.0

AI-Driven Process Optimization: Machine learning algorithms analyze real-time data from 100+ sensors (e.g., melt pressure, mold temperature) to predict defects and adjust parameters, achieving 98% first-pass yield .
Robotic Insert Handling: Collaborative robots (cobots) equipped with vision systems place inserts with ±0.005mm precision, supporting high-mix, low-volume production .

Evolution of Multi-Material Co-Molding Technology

Multi-Component Injection: Combining rigid PC/ABS with soft TPE in a single shot creates ergonomic tool handles with 50 Shore A grip zones .
Metal-Ceramic Composites: Ceramic-coated stainless steel inserts in PEEK plastic resist corrosion in offshore oil applications, withstanding 10,000+ hours in saltwater .

Practices in Environmental Protection and Sustainability

Recyclable Systems: By using polypropylene (PP) with aluminum inserts, automotive air ducts achieve 95% recyclability, reducing landfill waste by 40% .
Biodegradable Solutions: PLA (polylactic acid) with magnesium inserts for disposable medical devices degrade completely within 18 months under composting conditions .

5. Application Scenarios: From Consumer Electronics to High-End Manufacturing

Consumer Electronics: Reliability and Design Freedom

Wearable Devices: A smartwatch’s stainless steel crown, overmolded with TPU, provides 5 ATM water resistance while maintaining tactile feedback .
Laptops: Aluminum heat sinks embedded in liquid crystal polymer (LCP) reduce CP
U temperatures by 10°C compared to traditional stamped-and-assembled designs .

Automotive Electronics: High-Performance Solutions

ADAS Sensors: Die-cast aluminum housings with PBT plastic lenses integrate radar antennas, achieving IP69K ingress protection and 10-year durability in -40°C to 85°C climates .
EV Chargers: Copper busbars overmolded with flame-retardant PPO (Noryl) handle 800V DC charging currents while meeting UL94 V-0 flammability standards .

Medical Devices: Precision and Biocompatibility

Surgical Instruments: Titanium alloy forceps with PEEK handles reduce weight by 35% while maintaining 150 N clamping force, critical for minimally invasive procedures .
Implants: Magnesium alloy stents overmolded with PLLA (poly-L-lactic acid) degrade gradually, eliminating the need for secondary surgeries .

Aerospace & Industrial Automation: Lightweighting and Extreme Environments

Aircraft Interiors: Carbon fiber-reinforced PEEK with aluminum inserts for aircraft seat brackets reduces weight by 50% compared to aluminum alone, while meeting FAA flammability requirements .
Industrial Robotics: Hardened steel gears embedded in POM plastic achieve 98% transmission efficiency in robotic joints, withstanding 10,000+ cycles without wear .

6. Future Outlook: Opening a New Era of Smart Hardware Design

The convergence of 3D printing and AI is poised to revolutionize insert molding:

3D-Printed Inserts: Metal AM (Additive Manufacturing) allows complex geometries like lattice structures, improving heat dissipation by 30% in LED modules .
Digital Twin Integration: Real-time simulation of molding processes using physics-based models reduces trial runs by 70%, cutting time-to-market by 50% .
Micro-Nano Scale Applications: MEMS devices with sub-100μm metal electrodes embedded in SU-8 photoresist enable next-gen biosensors with 0.1% detection sensitivity .

Conclusion

Insert molding is no longer just a manufacturing technique—it’s a material science revolution that bridges the gap between performance and design. By harmonizing metal’s robustness with plastic’s versatility, it empowers industries from consumer electronics to aerospace to create smarter, lighter, and more sustainable products. As automation, AI, and advanced materials continue to evolve, insert molding will remain at the forefront of innovation, driving the next generation of smart hardware toward unprecedented levels of integration and efficiency.

References

Market Research Report: Global Insert Molding Service Market Growth (2025-2031)
Technical Analysis: Insert Molding Process, Applications & Considerations
Innovation Case Study: Nanotechnology-Enhanced Flexible Sensors
Industry Trend: AI-Driven Mold Design Optimization
White Paper: 3D Printed Mold Inserts for Injection Molding
