How to Solve Common Defects in Mold Processing

Several defects can occur during mold processing, including warping, sink marks, weld lines, and short shots. Each of these defects can compromise the structural integrity and appearance of the molded part.

Warping

Warping occurs when different parts of the mold cool at uneven rates, causing deformation. To solve this, ensure uniform cooling by optimizing the cooling system design and using materials with similar shrinkage rates.

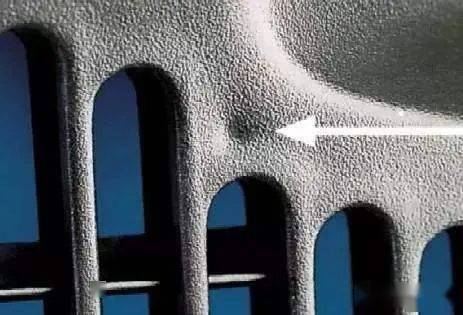

Sink Marks

Sink marks are depressions that occur when the inner part of the molding shrinks more than the outer surface. Increasing the holding pressure and time can help pack more material into the mold, reducing the likelihood of sink marks.

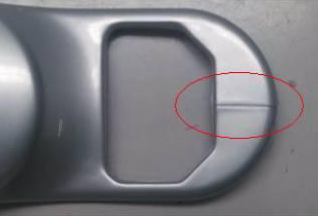

Weld Lines

Weld lines form when two flow fronts meet but don't properly unite, often due to inadequate temperature or pressure. Adjusting the mold temperature and increasing injection speed can help mitigate this issue.

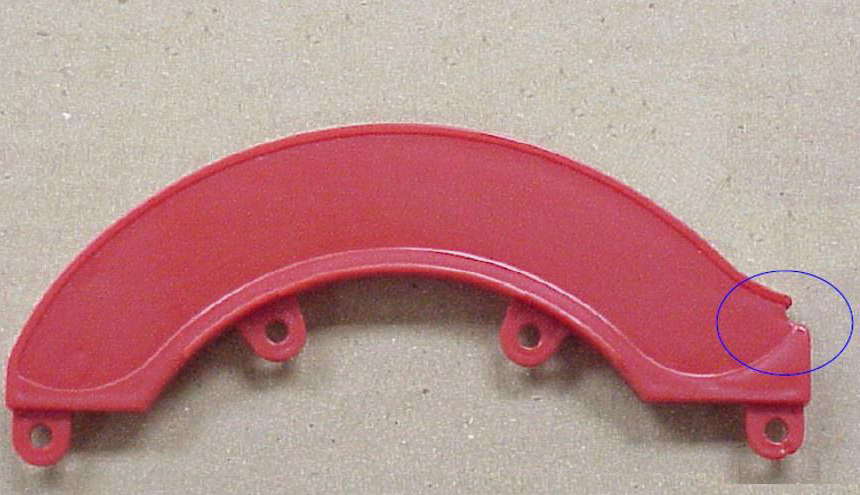

Short Shots

Short shots happen when the mold isn't filled completely, often due to insufficient material or improper flow. Ensuring adequate material volume and optimizing the injection speed and pressure can prevent short shots.

Preventive Measures

Preventing defects starts with proper mold design and material selection. Regular maintenance of the mold and machinery also plays a crucial role in minimizing defects.

Proper Mold Design

Designing molds with uniform wall thickness and adequate venting can significantly reduce the occurrence of defects. Utilizing simulation software to predict and address potential issues during the design phase is also beneficial.

Material Selection

Choosing the right material with appropriate flow properties and shrinkage rates is crucial. Conducting thorough material testing before full-scale production can help identify the best options.

Regular Maintenance

Regularly inspecting and maintaining molds and machinery ensures they operate efficiently and reduces the risk of defects. This includes cleaning, lubricating, and replacing worn-out parts as needed.

Conclusion

Addressing common defects in mold processing requires a combination of proper design, material selection, and regular maintenance. By understanding and implementing these solutions, manufacturers can improve product quality and production efficiency.
