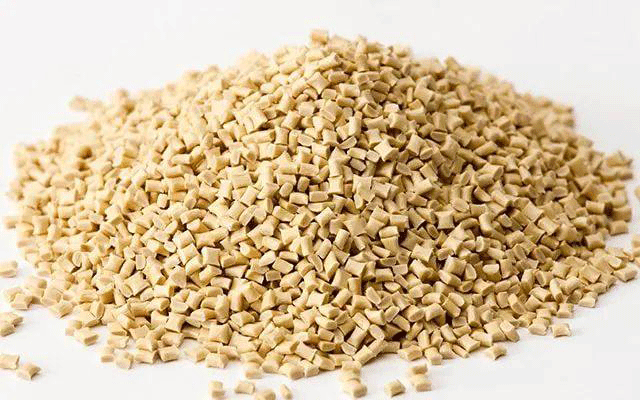

Liquid Crystal Polymers (LCPs) are a unique class of aromatic polyester thermoplastics that exhibit exceptional performance characteristics in injection molding applications. These high-performance materials are increasingly used in demanding industries such as electronics, medical devices, aerospace, and automotive components.

Key Advantages of LCP Materials

1. Exceptional Thermal Stability

Maintains mechanical properties at continuous use temperatures up to 240-300°C (464-572°F), with short-term exposure up to 350°C (662°F) possible.

2. Outstanding Dimensional Stability

Extremely low coefficient of thermal expansion (CTE) and minimal warpage during molding, critical for precision components.

3. Superior Chemical Resistance

Resistant to virtually all chemicals, solvents, and automotive fluids, with excellent hydrolysis resistance.

4. Excellent Flow Characteristics

Exceptionally low melt viscosity allows molding of thin walls (down to 0.1mm) and complex geometries with tight tolerances.

5. Inherent Flame Retardancy

Most grades meet UL94 V-0 flammability ratings without additives, making them ideal for electrical applications.

6. Mechanical Strength

High strength-to-weight ratio with excellent creep resistance and fatigue properties.

Main Disadvantages of LCP Materials

1. High Material Cost

Significantly more expensive than conventional engineering plastics (3-10 times the cost of PBT or nylon).

2. Anisotropic Properties

Molecular orientation during processing creates directional properties that must be accounted for in design.

3. Limited Adhesion

Poor bonding characteristics make secondary operations like painting or adhesive bonding challenging.

4. Special Processing Requirements

Requires precise temperature control and often specialized equipment for optimal results.

5. Surface Finish Limitations

Can exhibit weld lines and flow marks more prominently than some other engineering plastics.

LCP vs Other High-Performance Plastics

Optimal Applications for LCP

Best Uses:

• Miniature electronic connectors and sockets
• High-frequency circuit components (5G applications)
• Medical device components (surgical instruments, implants)
• Automotive under-hood components
• Thin-wall packaging for harsh environments
• Industrial sensor housings

Special Considerations for LCP Injection Molding

• Requires high mold temperatures (100-150°C) for optimal crystallization
• Gate design is critical to manage molecular orientation
• Drying is essential (4-6 hours at 120-150°C with -40°C dew point)
• Fast injection speeds recommended to maximize properties
• Post-mold annealing may be required for some applications

Conclusion

LCP materials offer unparalleled performance for demanding injection molding applications where extreme temperatures, chemical resistance, and dimensional stability are required. While the high cost and processing challenges limit their use to specialized applications, LCPs provide solutions where other materials fail. Continued development of new LCP formulations is expanding their use in emerging technologies like 5G communications and miniaturized electronics.
