Understanding Injection Molding Tolerances: Key Factors & Best Practices

author: mia

2025-08-28

Injection molding tolerances ensure part consistency, typically ±0.001 to ±0.005 inches, varying with material, part size, and design complexity for precise fits.

Tighter injection molding tolerances (e.g., ±0.0005

1. Introduction: The Critical Role of Tolerances in Injection Molding

In injection molding—one of the most widely used manufacturing processes for plastic parts—tolerances are the unsung heroes of product performance. A tolerance defines the allowable variation in a part’s dimension, geometry, or surface finish, and even the smallest deviation from specified tolerances can render a part useless: a medical syringe with a 0.1mm oversized barrel may deliver incorrect dosages; an automotive sensor housing that’s 0.05mm too thin could fail under vibration; an electronic connector with misaligned pins (due to tolerance drift) may short-circuit a device.

For manufacturers, mastering injection molding tolerances is not just about meeting design requirements—it’s about avoiding costly reworks, reducing scrap rates, ensuring assembly efficiency, and protecting brand reputation. According to a 2024 report by the Plastics Industry Association (PLASTICS), tolerance-related defects account for 32% of all injection molding scrap, costing the industry an estimated $8.7 billion annually. These defects include parts that don’t fit into assemblies, fail functional tests, or are rejected by quality control (QC) due to dimensional inconsistencies.

The challenge of controlling tolerances in injection molding stems from the process’s inherent complexity: molten plastic flows into a mold, cools, shrinks, and solidifies—all while being influenced by material properties, mold design, process parameters, and environmental conditions. Unlike machining (where material is cut to precise dimensions), injection molding relies on predicting and compensating for changes in the plastic’s shape during cooling—a dynamic that requires careful planning at every stage, from design to production.

This blog is designed to be a comprehensive guide for manufacturers, designers, and engineers seeking to understand, control, and optimize injection molding tolerances. We’ll cover everything from basic definitions and industry standards to the key factors that influence tolerances, advanced measurement techniques, and actionable best practices. By the end, you’ll have the knowledge to specify realistic tolerances for your parts, troubleshoot common tolerance issues, and build a production process that consistently delivers high-quality, dimensionally stable components.

2. What Are Injection Molding Tolerances? Definitions & Types

Before diving into how to control tolerances, it’s essential to establish a clear understanding of what they are, the different types of tolerances relevant to injection molding, and why they matter beyond just “making parts fit.” This section will lay the foundation for more advanced topics by defining key terms and clarifying common misconceptions.

2.1 Core Definition of Injection Molding Tolerances

Injection molding tolerances refer to the maximum allowable deviation from a specified dimension, geometric feature, or surface property of a plastic part produced via injection molding. They are defined on engineering drawings and act as a “safety net” that balances manufacturing feasibility with product functionality.

For example, if a design specifies a part’s length as 50.00mm with a tolerance of ±0.05mm, the acceptable range for the finished part’s length is 49.95mm to 50.05mm. Any part outside this range is considered non-conforming and may be rejected, reworked, or (in worst cases) cause assembly failures.

Tolerances are not arbitrary—they are determined by three key factors:

Functional Requirements: How the part will be used (e.g., a medical device needs tighter tolerances than a toy).
Manufacturing Feasibility: Whether the injection molding process can realistically achieve the tolerance (e.g., ±0.01mm is possible for small parts but not for large, thick-walled components).
Cost: Tighter tolerances require more precise molds, slower production cycles, and advanced QC—all of which increase costs. A tolerance of ±0.02mm may cost 2–3x more to produce than ±0.1mm.

2.2 Primary Types of Injection Molding Tolerances

Injection molding tolerances are not one-size-fits-all. They fall into three main categories, each addressing a different aspect of the part’s quality and functionality:

2.2.1 Dimensional Tolerances

Dimensional tolerances apply to linear or angular measurements, such as length, width, height, diameter, or angle. They are the most common type of tolerance and are critical for ensuring parts fit into assemblies.

Examples of dimensional tolerances:

A plastic gear with an outer diameter of 20.00mm ±0.03mm.
A laptop hinge with a thickness of 3.50mm ±0.02mm.
A pipe fitting with a thread pitch of 1.00mm ±0.01mm.

Dimensional tolerances are typically specified using the bilateral tolerance format (±X), where deviation is allowed above and below the nominal dimension. In some cases, unilateral tolerances (e.g., 50.00mm +0.05mm / -0.00mm) are used when only one direction of deviation is acceptable (e.g., a part that must not be too small to fit into a housing).

2.2.2 Geometric Tolerances

Geometric tolerances control the shape, orientation, location, and runout of features—beyond just their linear dimensions. They are critical for parts where form or position is more important than raw size, such as shafts, holes, or mating surfaces.

Common geometric tolerances (defined by ISO 8015 and ASME Y14.5) include:

Flatness: How much a surface deviates from being perfectly flat (e.g., a smartphone back cover with a flatness tolerance of 0.1mm over 100mm).
Perpendicularity: How much a feature deviates from being 90° to a reference surface (e.g., a hole that must be perpendicular to a base plate, with a tolerance of 0.05mm).
Position: How much a feature (e.g., a hole) can deviate from its specified location (e.g., a mounting hole with a position tolerance of 0.03mm relative to two reference edges).
Concentricity: How much two circular features (e.g., a shaft and a bore) deviate from sharing the same center (e.g., a bearing race with a concentricity tolerance of 0.02mm).

Geometric tolerances are represented by symbols on engineering drawings (e.g., ⊥ for perpendicularity, ○ for circularity) and require specialized measurement tools (like CMMs) to verify.

2.2.3 Surface Finish Tolerances

Surface finish tolerances control the texture, roughness, or smoothness of a part’s surface. While not strictly a “dimensional” tolerance, surface finish directly impacts functionality (e.g., friction, sealing) and aesthetics (e.g., a high-gloss consumer product).

Surface finish is measured in Ra (arithmetic mean roughness) or Rz (maximum height of the roughness profile), with lower values indicating smoother surfaces:

A medical catheter may require an Ra of 0.2μm to prevent tissue irritation.
A automotive interior trim piece may specify an Ra of 1.6μm for a matte finish.
A gear tooth surface may need an Ra of 0.8μm to reduce wear.

Surface finish is influenced by mold surface quality (e.g., polished vs. textured molds) and process parameters (e.g., injection speed, cooling time). A polished steel mold will produce parts with a smoother surface than a textured aluminum mold.

2.3 Why Tolerance Specifications Matter (Beyond "Fit")

While “ensuring parts fit” is the most obvious benefit of tolerances, their importance extends far beyond assembly. Here are four critical reasons why precise tolerance specifications are non-negotiable:

2.3.1 Functional Performance

Many parts rely on tight tolerances to function correctly. For example:

A fuel injector nozzle with a 0.1mm oversized orifice will deliver too much fuel, reducing engine efficiency and increasing emissions.
A pressure sensor diaphragm with uneven thickness (due to tolerance drift) will provide inaccurate pressure readings, leading to system failures.
A zipper slider with misaligned internal features (due to geometric tolerance issues) will jam or break during use.

In safety-critical industries like automotive, aerospace, and medical, tolerance deviations can even lead to injuries or fatalities. A medical implant with dimensional errors may fail to integrate with the body, causing infections or tissue damage.

2.3.2 Cost Control

Poorly defined or overly tight tolerances lead to unnecessary costs:

Over-Tolerancing: Specifying a tolerance of ±0.02mm when ±0.1mm is sufficient increases mold costs (by 30–50%) and production time (by 20–30%), as more precise equipment and slower cycles are required.
Under-Tolerancing: Specifying a tolerance that’s too loose may result in high scrap rates, as parts fail functional tests. For example, a connector with a ±0.2mm position tolerance may have misaligned pins, leading to 25% scrap.
Rework Costs: Non-conforming parts often require rework (e.g., trimming, sanding) to meet tolerances, adding labor and material costs. A 2023 study by McKinsey found that rework due to tolerance issues accounts for 15–20% of total production costs in injection molding.

2.3.3 Consistency and Scalability

Tolerances ensure consistency across production runs—whether you’re making 100 parts or 1 million. A well-defined tolerance specification:

Reduces part-to-part variability, which is critical for automated assembly lines (robots cannot adjust for inconsistent part sizes).
Enables scaling production across multiple molds or facilities, as all suppliers follow the same tolerance standards.
Simplifies quality control, as inspectors have clear criteria for accepting or rejecting parts.

2.3.4 Regulatory Compliance

Many industries are subject to strict regulatory requirements that mandate specific tolerances:

The medical industry (FDA, EU MDR) requires tight tolerances for devices like syringes, catheters, and implants to ensure patient safety.
The automotive industry (IATF 16949) mandates tolerances for safety-critical components like brakes, airbags, and steering systems.
The aerospace industry (AS9100) requires tolerances for parts used in aircraft, where even small deviations can lead to catastrophic failures.

Non-compliance with these standards can result in fines, product recalls, or loss of certification. For example, in 2022, a medical device manufacturer recalled 500,000 syringes due to dimensional errors in the barrel, which could cause incorrect dosage delivery—costing the company $20 million in fines and lost revenue.

2.4 Tolerance vs. Precision vs. Accuracy: Clarifying Common Confusions

Tolerance, precision, and accuracy are often used interchangeably—but they have distinct meanings. Understanding the differences is critical for setting realistic expectations and troubleshooting tolerance issues:

2.4.1 Tolerance

As defined earlier, tolerance is the allowable deviation from a specified dimension. It is a design requirement, not a measure of manufacturing capability. For example, a tolerance of ±0.05mm means the part can vary by up to 0.05mm from the nominal dimension.

2.4.2 Precision

Precision refers to the consistency of measurements—how close multiple measurements of the same feature are to each other. A precise process produces parts with little variation, even if they are not close to the nominal dimension.

Example:

A mold that produces parts with lengths of 50.03mm, 50.04mm, 50.03mm has high precision (variation of 0.01mm) but may be inaccurate if the nominal dimension is 50.00mm.

Precision is influenced by process stability (e.g., consistent injection pressure, temperature control) and equipment accuracy (e.g., mold machining precision).

2.4.3 Accuracy

Accuracy refers to how close a measurement is to the true or nominal dimension. An accurate process produces parts that are close to the specified dimension, even if there is more variation.

Example:

A mold that produces parts with lengths of 49.99mm, 50.01mm, 50.00mm has high accuracy (average of 50.00mm) but lower precision (variation of 0.02mm) than the previous example.

Accuracy is influenced by mold design (e.g., compensating for material shrinkage) and calibration (e.g., regular maintenance of measurement tools).

The Ideal Scenario: High Precision + High Accuracy

For injection molding, the goal is to achieve both high precision and high accuracy. A process that is both precise and accurate will produce parts that are consistently close to the nominal dimension, with minimal variation. For example:

A mold that produces parts with lengths of 50.00mm, 50.01mm, 49.99mm has high precision (variation of 0.02mm) and high accuracy (average of 50.00mm)—meeting a ±0.05mm tolerance with ease.

Confusing these terms can lead to costly mistakes. For example, if a part is out of tolerance due to low accuracy (not close to nominal), the solution may involve adjusting the mold (e.g., resizing the cavity to compensate for shrinkage). If the issue is low precision (high variation), the solution may involve stabilizing process parameters (e.g., upgrading to a more precise injection molding machine).

3. Industry Standards for Injection Molding Tolerances

To ensure consistency and clarity across the global injection molding industry, manufacturers rely on established standards for defining and measuring tolerances. These standards provide a common language for designers, mold makers, and production teams, reducing miscommunication and ensuring that parts meet functional and regulatory requirements. This section will overview the most widely used global and industry-specific standards, as well as how to interpret tolerance symbols on engineering drawings.

3.1 Global Standards: ISO 8015, ISO 286, and DIN 16901

The International Organization for Standardization (ISO) develops and publishes global standards for injection molding tolerances, which are adopted by most countries outside of North America. The three most critical ISO standards for tolerances are ISO 8015, ISO 286, and DIN 16901 (a German standard often referenced alongside ISO).

3.1.1 ISO 8015: Geometric Tolerancing

ISO 8015:2011 is the global standard for geometric tolerancing in technical product documentation. It defines the principles, symbols, and rules for specifying geometric tolerances (e.g., flatness, perpendicularity, position) on engineering drawings.

Key features of ISO 8015 include:

Tolerance Zones: Defines the region within which a feature must lie (e.g., a flatness tolerance of 0.1mm means the surface must lie within a zone between two parallel planes 0.1mm apart).
Datum Reference Frames: Establishes reference surfaces, axes, or points to define the position of features (e.g., a hole’s position may be referenced to two adjacent edges of the part).
Modifiers: Symbols that adjust tolerance requirements (e.g., “M” for maximum material condition, which relaxes the tolerance when the part is not at its maximum size).

ISO 8015 is critical for ensuring that geometric tolerances are interpreted consistently across different countries and suppliers. For example, a position tolerance specified per ISO 8015 will be understood the same way by a mold maker in China as by a designer in Germany.

3.1.2 ISO 286: Dimensional Tolerances for Linear and Angular Sizes

ISO 286-1:2010 and ISO 286-2:2010 specify the system of limits and fits for linear and angular sizes. They define 18 tolerance grades (IT01 to IT18), where IT01 is the tightest (for precision parts like gages) and IT18 is the loosest (for non-critical parts like decorative trim).

Examples of ISO 286 tolerance grades for injection molding:

IT5 (Tight Tolerance): Used for precision parts like medical connectors (e.g., a 10mm diameter with a tolerance of ±0.005mm).
IT7 (Medium Tolerance): Used for most functional parts like automotive sensors (e.g., a 20mm length with a tolerance of ±0.018mm).
IT10 (Loose Tolerance): Used for non-critical parts like toy components (e.g., a 50mm width with a tolerance of ±0.084mm).

ISO 286 also defines “fits” (the relationship between two mating parts, e.g., clearance fit, interference fit). For example, a shaft and bore with a clearance fit will have a small gap, allowing the shaft to rotate freely, while an interference fit will require pressure to assemble (creating a tight bond).

3.1.3 DIN 16901: Tolerances for Thermoplastic Injection Molded Parts

While not an ISO standard, DIN 16901 (a German Institute for Standardization standard) is widely used globally for specifying tolerances for thermoplastic injection molded parts. It is more specific to injection molding than ISO 286, as it accounts for material shrinkage and part geometry.

Key features of DIN 16901 include:

Part Size-Based Tolerances: Tolerances increase with part size (e.g., a 10mm part may have a tolerance of ±0.05mm, while a 100mm part may have ±0.2mm).
Material Classes: Defines four material classes based on shrinkage (Class 1: low shrinkage, e.g., POM; Class 4: high shrinkage, e.g., PE), with tighter tolerances for low-shrinkage materials.
Wall Thickness Adjustments: Tolerances are adjusted for wall thickness (thicker parts have looser tolerances due to increased shrinkage variation).

DIN 16901 is often used as a starting point for tolerance specifications, as it provides realistic guidelines for what is achievable with injection molding. For example, a designer specifying a 50mm ABS part (Class 2 material) with a 2mm wall thickness would reference DIN 16901 to set a tolerance of ±0.12mm.

3.2 Industry-Specific Standards (Automotive, Medical, Electronics)

While global standards provide a foundation, many industries have developed their own standards to address unique tolerance requirements. These standards are often more stringent than ISO/DIN standards and align with regulatory or functional needs.

3.2.1 Automotive Industry: IATF 16949 and Customer-Specific Requirements

The automotive industry relies on IATF 16949 (a quality management standard) and customer-specific requirements (CSRs) from OEMs like Ford, Toyota, and Volkswagen. These standards mandate tight tolerances for safety-critical components and require rigorous documentation of tolerance control processes.

Examples of automotive tolerance requirements:

Engine Components: A fuel pump housing may require a dimensional tolerance of ±0.02mm to ensure proper sealing and prevent fuel leaks.
Safety Systems: An airbag sensor bracket may specify a position tolerance of 0.03mm to ensure the sensor deploys correctly in a crash.
Electrical Connectors: A wiring harness connector may need a geometric tolerance of 0.01mm for pin alignment to prevent short circuits.

Automotive OEMs also require statistical process control (SPC) for tolerance monitoring, with process capability indices (Cpk) of 1.33 or higher (meaning the process produces parts within tolerance 99.99% of the time).

3.2.2 Medical Device Industry: ISO 13485 and FDA QSR

The medical device industry is governed by ISO 13485 (quality management for medical devices) and the U.S. FDA’s Quality System Regulation (QSR 820). These standards require extremely tight tolerances for devices that impact patient safety, as well as traceability of tolerance measurements.

Examples of medical tolerance requirements:

Syringes: A 1mL syringe barrel may have an internal diameter tolerance of ±0.01mm to ensure accurate dosage delivery (a 0.01mm deviation can change the dosage by 5%).
Catheters: A catheter’s outer diameter may specify a tolerance of ±0.005mm to ensure it fits through blood vessels without causing damage.
Implants: A hip implant component may require a flatness tolerance of 0.002mm to ensure proper articulation and reduce wear.

Medical device manufacturers must also retain records of tolerance measurements for the lifetime of the device, as part of post-market surveillance requirements.

3.2.3 Electronics Industry: IPC Standards and Miniaturization Requirements

The electronics industry (especially for consumer electronics like smartphones and wearables) faces unique tolerance challenges due to miniaturization. Standards like IPC-A-610 (acceptability of electronic assemblies) and IPC-2221 (generic standard for printed circuit boards) include tolerance requirements for plastic components like connectors, housings, and heat sinks.

Examples of electronics tolerance requirements:

Micro-Connectors: A USB-C connector pin may have a dimensional tolerance of ±0.003mm to ensure reliable electrical contact (pin misalignment of 0.005mm can cause connection failures).
Smartphone Housings: A housing for a 6.7-inch display may specify a position tolerance of 0.05mm for mounting points to ensure the display fits without gaps.
Heat Sinks: A heat sink’s fin spacing may require a tolerance of ±0.1mm to ensure proper airflow and heat dissipation.

The electronics industry also requires tight tolerances for automated assembly, as surface-mount technology (SMT) machines rely on precise part dimensions to place components correctly.

3.3 ANSI/ASME Standards for North American Manufacturers

In North America, manufacturers often use standards developed by the American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME), rather than ISO standards. The most critical ANSI/ASME standards for injection molding tolerances are ASME Y14.5 and ASME B46.1.

3.3.1 ASME Y14.5: Dimensioning and Tolerancing

ASME Y14.5-2009 (Dimensioning and Tolerancing) is the North American equivalent of ISO 8015. It defines the symbols, rules, and practices for specifying dimensional and geometric tolerances on engineering drawings.

Key differences between ASME Y14.5 and ISO 8015 include:

Tolerance Zone Interpretation: ASME Y14.5 uses “true position” based on maximum material condition (MMC) more frequently than ISO 8015.
Symbol Layout: Some geometric tolerance symbols differ (e.g., ASME uses a circle with a cross for position, while ISO uses a circle with a dot).
Datum Reference Frames: ASME Y14.5 has more detailed rules for establishing datum references for complex parts.

Despite these differences, ASME Y14.5 and ISO 8015 are largely compatible, and many global manufacturers use a hybrid approach to accommodate both standards.

3.3.2 ASME B46.1: Surface Texture (Surface Finish)

ASME B46.1-2020 specifies surface texture parameters (e.g., Ra, Rz) and methods for measuring surface finish. It is the North American equivalent of ISO 4287 (surface texture measurement).

ASME B46.1 defines surface finish using both traditional “lay” symbols (e.g., || for parallel lay, X for cross lay) and numerical values (Ra in microinches or micrometers). For example, a part may specify a surface finish of “Ra 32 μin (0.8 μm)” with a parallel lay (||), indicating the surface texture is aligned with the part’s length.

3.4 How to Interpret Tolerance Symbols on Engineering Drawings

Tolerance symbols on engineering drawings can seem intimidating, but they follow a consistent format defined by ISO 8015 or ASME Y14.5. Understanding how to read these symbols is critical for mold makers and production teams to ensure parts meet design requirements. Below is a step-by-step guide to interpreting tolerance symbols, using a common geometric tolerance (position) as an example.

3.4.1 Anatomy of a Geometric Tolerance Feature Control Frame

A geometric tolerance is specified using a feature control frame (FCF), which consists of up to five compartments:

Tolerance Type Symbol: The first compartment contains the symbol for the geometric tolerance (e.g., ⊥ for perpendicularity, ○ for circularity, ⌖ for position).
Tolerance Value: The second compartment specifies the tolerance zone size (e.g., 0.05mm) and any modifiers (e.g., “M” for maximum material condition).
Datum References: The third (and optional fourth/fifth) compartments list the datum references (e.g., A, B, C) that the tolerance is based on.
Datum Modifiers: Optional modifiers for datums (e.g., “M” for maximum material condition).

Example FCF for a position tolerance:
⌖ 0.03 M | A | B

Interpretation:

The feature (e.g., a hole) must be within a position tolerance zone of 0.03mm, referenced to datums A and B, with maximum material condition applied.

3.4.2 Reading Dimensional Tolerances

Dimensional tolerances are typically specified directly next to the dimension, using one of three formats:

Bilateral Tolerance: ±X (e.g., 50.00 ±0.05mm) – deviation allowed above and below the nominal dimension.
Unilateral Tolerance: +X / -Y (e.g., 50.00 +0.05 / -0.00mm) – deviation allowed in only one direction (in this case, the part can be up to 50.05mm but not smaller than 50.00mm).
Limit Dimensions: Two values (e.g., 49.95 – 50.05mm) – the minimum and maximum allowable dimensions (equivalent to 50.00 ±0.05mm).

Example: A dimension labeled “10.00 ±0.02mm” means the part’s actual dimension must be between 9.98mm and 10.02mm.

3.4.3 Surface Finish Symbols

Surface finish symbols are placed on the engineering drawing near the surface they apply to. The basic symbol is a check mark (✓), with additional lines to indicate the measurement method:

✓: Surface finish is measured using any method (e.g., tactile, optical).
✓⃒: Surface finish is measured using a stylus instrument (e.g., a profilometer).

The surface finish value (Ra or Rz) is placed to the right of the symbol. Example:
✓⃒ Ra 1.6 μm

Interpretation: The surface must have an arithmetic mean roughness of 1.6 micrometers, measured with a stylus profilometer.

3.4.4 Common Mistakes in Interpreting Tolerances

Even experienced engineers can make mistakes when interpreting tolerances. Here are three to avoid:

Ignoring Modifiers: Modifiers like “M” (maximum material condition) can significantly impact the tolerance zone size. Forgetting to apply them can lead to incorrect measurements.
Misinterpreting Datums: Datums are critical for geometric tolerances—using the wrong datum reference can result in parts being rejected unnecessarily.
Confusing ISO and ASME Symbols: While most symbols are similar, small differences (e.g., position symbols) can lead to misinterpretation. Always confirm which standard the drawing follows.

To avoid these mistakes, it’s best to have a tolerance expert review critical drawings and provide training to production and QC teams on standard interpretation.

4. Key Factors Influencing Injection Molding Tolerances

Injection molding tolerances are not determined by a single factor—they are the result of a complex interplay between material properties, mold design, process parameters, part geometry, and environmental conditions. Even small changes in one of these factors can cause significant deviations from specified tolerances. This section will break down each key factor, explaining how it impacts tolerances and providing examples of real-world issues.

4.1 Material Properties: Shrinkage, Thermal Expansion, and Viscosity

The properties of the thermoplastic material used in injection molding are the single most significant factor influencing tolerances. Different materials behave differently during melting, filling, cooling, and solidification—all of which affect the final part’s dimensions. The three most critical material properties for tolerances are shrinkage, thermal expansion, and viscosity.

4.1.1 Shrinkage: The Primary Culprit of Tolerance Deviations

Shrinkage is the reduction in size that occurs when molten plastic cools and solidifies. All thermoplastics shrink, but the amount varies by material—ranging from 0.5% (low shrinkage, e.g., POM) to 5% (high shrinkage, e.g., PE). Shrinkage is the main reason mold cavities are designed larger than the desired part size (a process called “oversizing”).

Two types of shrinkage impact tolerances:

Volumetric Shrinkage: The overall reduction in the plastic’s volume as it cools. This is the primary type of shrinkage and is influenced by material crystallinity (semi-crystalline materials like PE shrink more than amorphous materials like ABS).
Anisotropic Shrinkage: Shrinkage that varies with direction (e.g., more shrinkage along the flow direction of the plastic than across it). This causes warpage and geometric tolerance issues, such as a flat part becoming curved.

Example: A mold for a 100mm ABS part (shrinkage rate of 0.8%) would be designed with a cavity size of 100.8mm (100mm × 1.008). If the actual shrinkage is 1.0% instead of 0.8%, the finished part will be 99.0mm—0.2mm below the nominal dimension, violating a ±0.1mm tolerance.

Factors that increase shrinkage variation (and thus tolerance deviations):

Inconsistent Cooling: Thicker parts cool more slowly, leading to more shrinkage than thinner parts.
Poor Material Drying: Moisture in the plastic (e.g., in ABS or PET) causes bubbles and uneven shrinkage.
Inadequate Packing Pressure: Insufficient pressure during the dwell phase leaves gaps in the mold, increasing shrinkage.

4.1.2 Thermal Expansion: Impact of Temperature on Dimensions

Thermal expansion is the increase in a material’s size when heated. While shrinkage is more significant during cooling, thermal expansion can cause tolerance issues during production and in the part’s end-use environment.

During injection molding:

The mold and plastic expand when heated, and the plastic contracts when cooled. If the mold’s thermal expansion is not accounted for, the cavity size may be incorrect, leading to tolerance deviations. For example, a steel mold (coefficient of thermal expansion: 13 × 10⁻⁶/°C) heated to 80°C will expand by 0.1%—a 100mm cavity will grow to 100.1mm, which must be factored into the mold design.

In end-use:

Parts exposed to high temperatures (e.g., automotive under-the-hood components) may expand beyond their tolerance range. For example, a nylon part (coefficient of thermal expansion: 100 × 10⁻⁶/°C) used in a 120°C engine bay will expand by 1.2%—a 50mm part will grow to 50.6mm, which may cause it to jam in a housing with a ±0.2mm tolerance.

To mitigate thermal expansion issues:

Choose materials with low coefficients of thermal expansion (e.g., glass-filled plastics) for high-temperature applications.
Account for mold thermal expansion in the cavity design (oversize or undersize the cavity based on mold operating temperature).
Specify temperature-dependent tolerances for parts used in extreme environments.

4.1.3 Viscosity: Controlling Flow and Fill

Viscosity is a measure of a fluid’s resistance to flow. For molten plastic, viscosity determines how easily it fills the mold cavity—and uneven flow can lead to tolerance issues like incomplete filling, weld lines, or uneven shrinkage.

Factors that affect plastic viscosity:

Temperature: Higher temperatures reduce viscosity (make the plastic flow more easily). If the barrel temperature is too low, the plastic may not fill the cavity completely, leading to undersized parts.
Shear Rate: The rate at which the plastic is sheared (stretched) as it flows through the mold. Higher shear rates (e.g., fast injection speeds) reduce viscosity, but excessive shear can cause material degradation.
Material Composition: Additives like glass fibers or plasticizers change viscosity. For example, glass-filled nylon has higher viscosity than unfilled nylon, requiring higher injection pressure to fill the mold.

Example: A low-viscosity material like PE flows easily and fills the mold uniformly, leading to consistent shrinkage and tight tolerances. A high-viscosity material like PEEK requires higher temperatures and pressure to flow—if these parameters are not optimized, the plastic may not fill the cavity evenly, causing dimensional variations between parts.

4.2 Mold Design & Manufacturing Precision

The mold is the “template” for the part, so its design and manufacturing precision directly impact the part’s tolerances. A poorly designed or machined mold will produce inconsistent parts, even with optimal process parameters. The key mold design and manufacturing factors influencing tolerances are cavity size and geometry, cooling system design, gate location and size, and mold material and machining accuracy.

4.2.1 Cavity Size and Geometry: Compensating for Shrinkage

The mold cavity must be sized to account for material shrinkage—if it’s too small, the part will be undersized; if it’s too large, the part will be oversized. Mold designers use the formula:
Cavity Size = Part Size × (1 + Shrinkage Rate)

However, this formula is a simplification—shrinkage varies with part geometry (e.g., thick vs. thin walls), so the cavity may need to be adjusted in specific areas. For example:

A part with a 5mm thick boss and 1mm thin walls will shrink more in the boss (due to slower cooling), so the mold cavity for the boss should be oversized by 1.5% (instead of the material’s average 1.0% shrinkage rate).

If the cavity geometry is incorrect (e.g., a hole is placed 0.1mm off-center), the part will have a position tolerance deviation—even if the process parameters are perfect. This is why mold machining precision is critical: a cavity machined with a tolerance of ±0.005mm will produce parts with tighter tolerances than a cavity machined with ±0.02mm.

4.2.2 Cooling System Design: Ensuring Uniform Shrinkage

Uneven cooling is one of the leading causes of warpage and geometric tolerance issues. The mold’s cooling system (channels that circulate water or oil) must be designed to cool the part uniformly—otherwise, some areas will shrink more than others.

Common cooling system mistakes that impact tolerances:

Cooling Channels Too Far from the Cavity: Thick areas of the part (e.g., bosses) may not cool quickly enough, leading to excessive shrinkage.
Uneven Channel Spacing: Channels spaced 10mm apart in one area and 20mm apart in another will cause uneven cooling and shrinkage.
Dead Zones (No Cooling): Areas of the mold without cooling channels (e.g., small features) will cool slowly, leading to warpage.

Example: A rectangular part with cooling channels only on two sides will cool faster on those sides, causing the part to warp into a “U” shape—violating flatness tolerances. A well-designed cooling system with channels on all four sides and near thick features will produce a flat part with consistent dimensions.

4.2.3 Gate Location and Size: Controlling Flow and Pressure

The gate is the opening through which molten plastic enters the mold cavity. Its location and size influence how the plastic flows into the cavity, which impacts shrinkage, weld lines, and part dimensions.

Gate location issues that affect tolerances:

Gate Too Far from Thick Features: Plastic may cool before filling thick areas, leading to undersized features.
Multiple Gates Causing Weld Lines: If plastic flows through two gates and meets in the middle of the cavity, a weld line forms—this area is weaker and may have different shrinkage, leading to dimensional variations.

Gate size issues:

Gate Too Small: Restricts flow, causing incomplete filling or high shear rates (leading to material degradation and uneven shrinkage).
Gate Too Large: Increases the time it takes for the gate to solidify, leading to excessive packing and oversized parts.

Example: A part with a single gate at one end may have more shrinkage at the opposite end (due to pressure drop), causing the part to be shorter than nominal. Relocating the gate to the center of the part or adding a second gate can balance flow and reduce shrinkage variation.

4.2.4 Mold Material and Machining Accuracy

The mold material and machining process determine how well the mold retains its shape over time and how precise the cavity geometry is.

Mold material options:

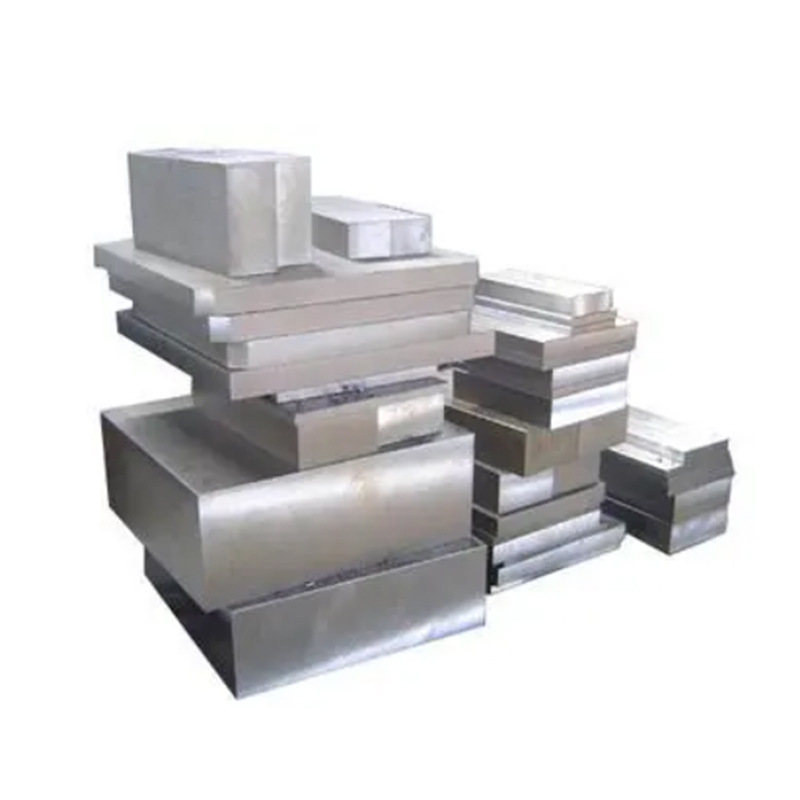

P20 Steel: A pre-hardened steel used for low-to-medium production runs (100,000–500,000 parts). It has good machinability and retains precision well.
H13 Steel: A heat-treated steel used for high-production runs (1 million+ parts) or high-temperature materials (e.g., PEEK). It is more wear-resistant than P20 but harder to machine.
Aluminum: Used for prototyping or low-production runs (10,000–50,000 parts). It is lightweight and heats/cools quickly but wears faster than steel, leading to cavity degradation and tolerance drift over time.

Machining accuracy:

Molds are typically machined using CNC milling (for complex geometries) and EDM (Electrical Discharge Machining) (for tight tolerances and small features). EDM can achieve machining tolerances of ±0.001mm, while CNC milling can achieve ±0.005mm.
Poor machining (e.g., tool wear, incorrect tool paths) can create cavities with rough surfaces or incorrect dimensions, leading to parts with surface finish or dimensional tolerance issues.

Example: An aluminum mold used to produce 100,000 ABS parts may experience cavity wear of 0.01mm after 50,000 parts—causing subsequent parts to be 0.01mm oversized, violating a ±0.008mm tolerance. Switching to H13 steel would reduce wear and maintain tolerance consistency.

4.3 Injection Molding Process Parameters

Even the best-designed mold will produce out-of-tolerance parts if process parameters are not optimized. Injection molding process parameters control how the plastic is melted, injected, packed, and cooled—and small adjustments can have a big impact on tolerances. The most critical parameters are injection temperature, injection pressure and speed, packing pressure and time, and cooling time and temperature.

4.3.1 Injection Temperature: Ensuring Proper Melting

The injection temperature (barrel temperature) determines how well the plastic is melted. If the temperature is too low:

The plastic may not melt completely, leading to lumps or incomplete filling (undersized parts).
Viscosity increases, requiring higher injection pressure to fill the mold—this can cause uneven flow and shrinkage.

If the temperature is too high:

The plastic may degrade (burn or discolor), leading to weak spots or surface defects that hide tolerance issues.
Thermal expansion of the plastic increases, leading to oversized parts after cooling.

Different materials require different injection temperatures:

Low-Temperature Materials: PE (160–270°C), PP (180–270°C).
Medium-Temperature Materials: ABS (220–280°C), PC (260–320°C).
High-Temperature Materials: PEEK (340–400°C), LCP (300–360°C).

Example: An ABS part produced at 230°C (too low) may have incomplete filling of a small hole, making the hole 0.05mm smaller than nominal. Increasing the temperature to 250°C (optimal) ensures complete filling and meets the ±0.02mm tolerance for the hole.

4.3.2 Injection Pressure and Speed: Controlling Flow and Fill

Injection pressure is the force applied to push molten plastic into the mold cavity, while injection speed is the rate at which the plastic flows into the cavity. Both parameters influence how well the mold is filled and how evenly the plastic is distributed.

If injection pressure is too low:

The plastic may not fill the cavity completely (short shot), leading to undersized parts or missing features.
There may be insufficient pressure to push plastic into thin features, causing dimensional variations.

If injection pressure is too high:

The mold may “breathe” (open slightly), leading to flash (excess plastic) that must be trimmed—trimming can remove material and reduce part size below tolerance.
The plastic may be overpacked, leading to internal stress and warpage (geometric tolerance issues).

Injection speed works in tandem with pressure:

Fast Injection Speed: Fills the mold quickly, reducing cooling time and improving surface finish. However, too fast a speed can cause turbulence (air bubbles) or shear heating (material degradation).
Slow Injection Speed: Reduces turbulence but increases cooling time, leading to more shrinkage and potential incomplete filling.

Example: A small electronic connector with thin walls (0.5mm) requires high injection speed (100mm/s) to fill the mold before the plastic cools. If the speed is set to 50mm/s, the plastic cools before filling the walls, making them 0.45mm thick (0.05mm below nominal), violating a ±0.02mm tolerance.

4.3.3 Packing Pressure and Time: Compensating for Shrinkage

The packing phase occurs after the mold cavity is filled—additional pressure is applied to push more plastic into the cavity, compensating for shrinkage as the plastic cools. Packing pressure (typically 50–80% of injection pressure) and packing time (1–5 seconds) are critical for preventing shrinkage-related tolerance issues like sink marks and undersized parts.

If packing pressure is too low:

The plastic shrinks more than expected, leading to undersized parts or sink marks (depressions on the part surface).
Voids (air bubbles) may form in thick areas, reducing part strength and causing dimensional variations.

If packing pressure is too high:

The part may be overpacked, leading to internal stress and warpage (e.g., a flat part becoming curved).
The mold may experience excessive wear, leading to cavity degradation over time.

Packing time is equally important:

Too short: Insufficient time to pack the cavity, leading to shrinkage.
Too long: Wastes production time and may cause the gate to solidify, preventing additional plastic from entering the cavity.

Example: A 100mm PP part with a 3mm thick boss requires a packing pressure of 70% of injection pressure and a packing time of 3 seconds. If the packing time is set to 1 second, the boss shrinks by 0.15mm (instead of the expected 0.08mm), making the part 99.85mm long (0.15mm below nominal), violating a ±0.1mm tolerance.

4.3.4 Cooling Time and Temperature: Ensuring Stable Dimensions

Cooling time is the time the part spends in the mold after packing, allowing it to solidify before ejection. Cooling temperature (mold temperature) is the temperature of the mold during cooling, which influences how quickly the plastic cools.

If cooling time is too short:

The part is not fully solidified when ejected, leading to deformation (e.g., warpage, sagging) as it cools outside the mold.
Shrinkage continues after ejection, leading to dimensional variations between parts.

If cooling time is too long:

Production cycle time increases, reducing efficiency and increasing costs.
The part may stick to the mold, requiring force to eject—this can damage the part and cause dimensional errors.

Cooling temperature also impacts tolerances:

High Mold Temperature: Slows cooling, increasing shrinkage and cycle time but improving surface finish.
Low Mold Temperature: Speeds cooling, reducing shrinkage but potentially causing surface defects (e.g., weld lines) that affect tolerance measurements.

Example: A PC part with a flatness tolerance of 0.1mm requires a cooling time of 20 seconds and a mold temperature of 80°C. If the cooling time is set to 15 seconds, the part warps by 0.15mm when ejected, exceeding the flatness tolerance. Increasing the cooling time to 20 seconds ensures the part is fully solidified and meets the tolerance.

4.4 Part Design: Geometry, Wall Thickness, and Features

The part’s design itself plays a major role in determining achievable tolerances. Poorly designed parts (e.g., uneven wall thickness, sharp corners, complex features) are more likely to have tolerance issues, even with optimal molds and process parameters. The key design factors influencing tolerances are wall thickness uniformity, part size and complexity, draft angles and undercuts, and feature placement.

4.4.1 Wall Thickness Uniformity: Preventing Uneven Shrinkage

Uneven wall thickness is the most common design flaw leading to tolerance issues. Thick areas of the part cool more slowly than thin areas, causing more shrinkage and warpage. For example:

A part with a 5mm thick base and 1mm thin walls will shrink 2–3x more in the base, leading to warpage (the part will curve upward) and dimensional variations.

To ensure uniform wall thickness:

Design walls with a consistent thickness (typically 0.5–3mm for most thermoplastics).
Use ribs (thin, raised features) to add strength to thin walls instead of increasing thickness.
Use tapers to transition between thick and thin areas (e.g., a 5mm to 1mm transition over 10mm) to reduce stress and uneven shrinkage.

Example: A smartphone housing with a uniform 1.5mm wall thickness will have consistent shrinkage (0.8% for ABS), producing a part with dimensions within ±0.05mm. A housing with a 3mm thick camera bump and 1mm walls will shrink 1.2% in the bump, causing the bump to be 0.04mm smaller than nominal—violating a ±0.03mm tolerance for the camera fit.

4.4.2 Part Size and Complexity: Scaling Tolerances Realistically

Larger and more complex parts are harder to produce with tight tolerances. As part size increases, small variations in shrinkage, cooling, and flow become more significant—leading to larger dimensional deviations. For example:

A 10mm part with a 0.1% shrinkage variation will have a dimensional deviation of 0.01mm (easily within ±0.05mm).
A 1000mm part with the same 0.1% shrinkage variation will have a deviation of 1.0mm (way beyond a ±0.5mm tolerance).

Complexity also impacts tolerances:

Parts with multiple features (e.g., holes, bosses, undercuts) require more precise mold design and process control to ensure all features meet their tolerances.
Features with small dimensions (e.g., micro-holes <1mm) are harder to fill and measure, leading to higher tolerance variation.

To manage size and complexity:

Specify looser tolerances for larger parts (per standards like DIN 16901).
Simplify part geometry where possible (e.g., combine multiple parts into one to reduce assembly tolerance requirements).
Use multi-cavity molds for small, complex parts to improve consistency.

Example: A 500mm automotive bumper (large, complex) may have a dimensional tolerance of ±0.5mm, while a 5mm sensor housing (small, simple) may have ±0.02mm. This aligns with realistic achievable tolerances for each part size.

4.4.3 Draft Angles and Undercuts: Avoiding Deformation During Ejection

Draft angles are slight tapers (typically 0.5–2 degrees) on vertical features of the part, which help the part release from the mold during ejection. Without draft angles, the part may stick to the mold, requiring force to eject—this can cause deformation (e.g., bending, scratching) and dimensional errors.

Undercuts are features that prevent the part from being ejected straight out of the mold (e.g., a hole with a lip, a recess on the side of the part). Undercuts require complex mold designs (e.g., slides, lifters) to eject the part, and if not designed correctly, can cause tolerance issues like:

Slide Misalignment: If the mold slide (used to create the undercut) is not aligned correctly, the undercut feature may be off-center, violating position tolerances.
Part Damage: Forcing the part out of the mold without proper slides can damage the undercut, leading to dimensional variations.

Example: A plastic cup with a 1-degree draft angle on the side will eject easily, maintaining its 75mm diameter within ±0.1mm. A cup without a draft angle will stick to the mold, requiring force to eject—this may stretch the cup to 75.2mm (0.2mm oversized), violating the tolerance.

4.4.4 Feature Placement: Minimizing Flow-Related Variations

The placement of features (e.g., holes, bosses) relative to the gate can impact their tolerances, as plastic flow varies across the mold cavity. Features far from the gate may experience lower pressure and slower flow, leading to more shrinkage and dimensional variations.

To optimize feature placement:

Locate critical features (e.g., holes requiring tight position tolerances) near the gate, where pressure and flow are more consistent.
Avoid placing features in areas where weld lines are likely to form (e.g., opposite the gate in a rectangular part), as weld lines can cause dimensional variations and weak spots.

Example: A part with two holes—one 10mm from the gate and one 50mm from the gate—may have a position tolerance of ±0.02mm for the near hole and ±0.05mm for the far hole. This is because the far hole experiences more pressure drop and flow variation, leading to greater shrinkage.

4.5 Environmental Conditions (Temperature, Humidity)

Environmental conditions in the production facility—such as ambient temperature and humidity—can impact injection molding tolerances, though their influence is often overlooked. These conditions affect material properties, mold temperature, and process stability.

4.5.1 Ambient Temperature: Controlling Mold and Material Stability

Ambient temperature (the temperature of the production facility) affects the mold’s temperature and the plastic’s properties. If ambient temperature varies significantly (e.g., due to seasonal changes or poor facility insulation):

The mold’s temperature may fluctuate, leading to uneven cooling and shrinkage. For example, a mold operating at 80°C in a 25°C facility may drop to 75°C if the facility temperature drops to 15°C—this can increase shrinkage by 0.2%, leading to undersized parts.
The plastic’s viscosity may change, as the material absorbs heat from the environment. For example, cold plastic pellets may take longer to melt in the barrel, leading to inconsistent melting and flow.

To mitigate ambient temperature issues:

Maintain a consistent facility temperature (typically 20–25°C) using heating, ventilation, and air conditioning (HVAC) systems.
Insulate the mold and barrel to reduce heat loss to the environment.
Preheat plastic pellets to a consistent temperature before feeding them into the hopper.

4.5.2 Humidity: Preventing Moisture-Related Defects

Humidity (moisture in the air) can be a major issue for hygroscopic materials—plastics that absorb moisture (e.g., ABS, PET, Nylon). Moisture in the plastic causes:

Bubbles and Voids: When the plastic is heated, moisture evaporates, creating bubbles that reduce part density and cause dimensional variations.
Material Degradation: Moisture can break down the plastic’s molecular structure (hydrolysis), leading to reduced strength and uneven shrinkage.

Even non-hygroscopic materials (e.g., PE, PP) can absorb small amounts of moisture, which can cause surface defects (e.g., splay marks) that hide tolerance issues.

To control humidity:

Use desiccant dryers to remove moisture from hygroscopic materials before processing (typically reducing moisture content to <0.02%).
Store plastic pellets in sealed containers to prevent moisture absorption.
Maintain facility humidity at 40–60% using dehumidifiers or humidifiers.

Example: ABS pellets stored in a 80% humidity environment for 24 hours will absorb 0.5% moisture. Processing these pellets without drying will create bubbles in the part, leading to a 0.03mm reduction in thickness—violating a ±0.02mm tolerance. Drying the pellets to 0.02% moisture content eliminates bubbles and maintains the tolerance.

4.6 Mold Wear and Maintenance Over Time

Molds wear out over time due to repeated contact with molten plastic, pressure, and temperature cycles. This wear causes the mold cavity to change shape, leading to tolerance drift (gradual deviation from specified tolerances) over production runs. The key factors contributing to mold wear are abrasion, corrosion, thermal fatigue, and inadequate maintenance.

4.6.1 Abrasion: Wear from Filled Materials

Abrasion occurs when filled plastics (e.g., glass-filled nylon, carbon-filled PEEK) rub against the mold cavity during injection and ejection. The hard filler particles (e.g., glass fibers) scratch the cavity surface, increasing its size and roughness.

Example: A mold used to produce 100,000 glass-filled nylon parts may experience cavity wear of 0.01mm after 50,000 parts. This wear causes subsequent parts to be 0.01mm oversized—if the tolerance is ±0.008mm, these parts will be rejected.

4.6.2 Corrosion: Damage from Chemicals or Moisture

Corrosion occurs when the mold is exposed to chemicals (e.g., plastic additives, cleaning agents) or moisture. For example:

Some plastic additives (e.g., flame retardants) can react with steel molds, causing rust or pitting.
Moisture in the cooling system can leak into the mold, leading to rust in the cavity.

Corrosion creates rough spots or pits in the cavity, which transfer to the part’s surface—affecting surface finish tolerances and potentially causing dimensional variations.

4.6.3 Thermal Fatigue: Cracking from Temperature Cycles

Thermal fatigue occurs when the mold is repeatedly heated and cooled, causing stress in the mold material. Over time, this stress leads to small cracks (called “heat checks”) on the cavity surface.

Heat checks are most common in high-temperature applications (e.g., processing PEEK at 380°C) or when the mold is made of a material with low thermal fatigue resistance (e.g., aluminum). These cracks can cause surface defects on the part and, in severe cases, lead to cavity deformation.

4.6.4 Inadequate Maintenance: Accelerating Wear

Inadequate mold maintenance accelerates wear and tolerance drift. Common maintenance mistakes include:

Infrequent Cleaning: Plastic residue builds up in the cavity, leading to surface defects and incorrect part dimensions.
Lack of Lubrication: Ejection pins and slides become stuck, causing damage to the part and mold.
Delayed Repairs: Small cracks or wear are not fixed, leading to more severe damage over time.

To extend mold life and maintain tolerances:

Implement a preventive maintenance schedule (e.g., clean the mold after every 1,000 cycles, inspect for wear monthly).
Use mold coatings (e.g., PVD coatings) to reduce abrasion and corrosion.
Repair small wear or cracks immediately using EDM or welding.

Example: A mold for a medical connector with a preventive maintenance schedule (cleaning every 500 cycles, inspection every 10,000 cycles) maintains its cavity dimensions within ±0.005mm for 200,000 parts. A mold without maintenance may experience tolerance drift after 50,000 parts, requiring expensive repairs or replacement.

5. Measuring Injection Molding Tolerances: Tools & Techniques

Once a part is produced, verifying that it meets tolerance specifications is critical for quality control (QC) and process optimization. The choice of measurement tool and technique depends on the type of tolerance (dimensional, geometric, surface finish), the part’s size and complexity, and the required measurement accuracy. This section will overview the most common measurement tools—from basic hand tools to advanced 3D scanning systems—and explain how to choose the right method for your application.

5.1 Basic Measurement Tools: Calipers, Micrometers, and Gauges

Basic measurement tools are affordable, easy to use, and suitable for simple dimensional tolerances (e.g., length, width, diameter) on small to medium-sized parts. They are ideal for high-volume production lines where quick, on-the-spot measurements are needed.

5.1.1 Calipers: Versatile Linear Measurement

Dongguan Sanlixin Plastic Technology Co.,Ltd

Shenzhen Sanlixin Technology Co., Ltd. and Dongguan Sanlixin Plastic Technology Co., Ltd. is a manufacturer integrating precision plastic mold design, mold opening, single (double) color injection molding, IML injection molding processing, producing various single (double) color, IML process high-end appearance decorative structural parts, two-color buttons, USB dust plugs, panels and other plastic products, providing customers with fast, excellent, Midea all-round service, the company has 15 years of experience in precision plastic mold design, processing and production, with a variety of advanced machine injection molding equipment with excellent quality and fast service to win the trust and strong support of our customers.

How Does High-Precision Injection Molding Achieve Micron-Level Tolerances? A Core Technical Analysis from Equipment to Processes

Why Injection Molding Remains a Cornerstone of Mass Production

Advancements and Challenges of Mold Ejector Pins: A Comprehensive Industry Update

2026-02-27

Mold Slanted Ejectors: Innovative Solutions for Undercut Parts - Advantages, Limitations, and Expert Guides

2026-02-01

Mold Ejector Pin: Key Component in Injection Molding - Advantages, Disadvantages & Comprehensive Guide

2026-01-31

Lego Toys: The Pinnacle of Injection Molding Excellence and Why It Stands Out

2025-12-17
