Introduction: Demystifying Injection Molding Prototype Costs

Injection molding is a widely used manufacturing process for producing plastic parts. However, the cost of injection molding prototypes often raises eyebrows. Many factors contribute to these costs, with mold complexity, material selection, and production scale being the primary drivers. By understanding these elements and their interplay, businesses can better manage their budgets and make informed decisions in product development.

The Impact of Mold Complexity on Cost

Complex Geometries and Intricate Features

Parts with complex geometries, such as undercuts, thin walls, and detailed surface textures, require more intricate mold designs. According to industry expert Dr. John Smith, a professor of manufacturing engineering, "Complex features in a part mean more complex mold cavities. This often involves additional machining operations, such as multi - axis CNC machining or electrical discharge machining (EDM), which increase the labor and time required for mold making." For example, a part with internal threads or a complex lattice structure will need a mold with specialized inserts or movable components, driving up the cost.

Tight Tolerances

When a part demands tight tolerances, the mold must be fabricated with extremely high precision. Tight tolerances require more accurate machining equipment and a higher level of quality control. A study by the Society of Manufacturing Engineers found that for every 10% reduction in tolerance requirements, the mold cost can increase by 20 - 30%. This is because achieving tighter tolerances often involves additional grinding, polishing, and inspection steps.

Mold Actions and Special Requirements

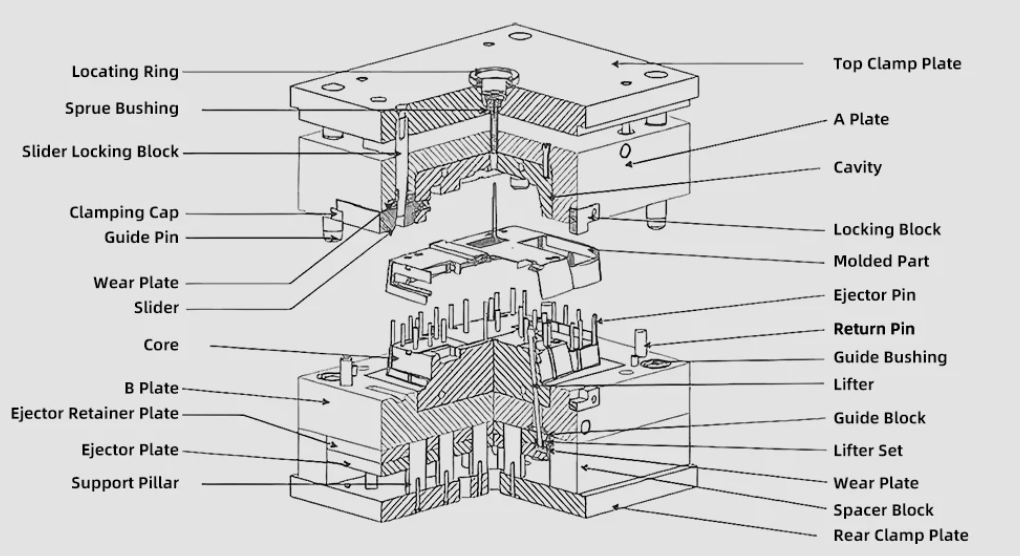

Mold actions like side cores, lifters, and hot runner systems add complexity to the mold and, consequently, to the cost. Side cores are used to create undercuts, and lifters are for ejecting parts with complex shapes. Hot runner systems, which keep the plastic in a molten state during the molding process, are more expensive to install and maintain. These special requirements not only increase the initial mold cost but also the cost of maintenance and repair.

Material Selection: Balancing Performance and Cost

Common vs. Specialized Materials

Common plastics like ABS (acrylonitrile - butadiene - styrene) and polypropylene (PP) are generally more cost - effective. They are widely available and have well - established processing parameters. On the other hand, specialized engineering plastics such as polycarbonate (PC), nylon, and PEEK (polyether - ether - ketone) offer superior properties like high heat resistance, chemical resistance, and mechanical strength but come at a significantly higher price. Dr. Emily Johnson, a materials scientist, states, "When choosing a material, it's crucial to match the material's properties to the product's requirements. Over - specifying a high - performance material when a common one would suffice can lead to unnecessary cost increases."

Material Cost Variations

The cost of plastic materials can vary depending on factors such as market demand, raw material availability, and manufacturing processes. For example, the price of polyethylene (PE) can fluctuate based on the cost of crude oil, as it is a petrochemical - based product. Additionally, materials with specific additives or colorants may cost more. Some specialty materials can cost up to 10 times more than common plastics.

Recycled and Sustainable Materials

In recent years, there has been a growing trend towards using recycled and sustainable materials in injection molding. While these materials can be a cost - effective option in some cases, they may also come with challenges. Recycled materials may have inconsistent properties, which could affect the quality of the final product. However, as technology improves and the market for recycled materials expands, their cost - effectiveness is expected to increase.

Production Scale: Economies of Scale at Play

Low - Volume Production

For low - volume production, the per - unit cost of injection molding prototypes is relatively high. This is because the fixed costs of mold making are spread over a small number of parts. According to a report by McKinsey & Company, in low - volume production (less than 1000 parts), the mold cost can account for up to 70% of the total cost per part. In such cases, using alternative prototyping methods like 3D printing or CNC machining may be more cost - effective.

High - Volume Production

As the production volume increases, the per - unit cost decreases significantly. This is due to economies of scale. The fixed costs of mold making and equipment setup are spread over a larger number of parts. For example, if a mold costs \(10,000 and is used to produce 1000 parts, the mold cost per part is \)10. But if the same mold is used to produce 100,000 parts, the mold cost per part drops to $0.10. High - volume production also allows for more efficient use of resources and potentially lower material costs through bulk purchasing.

Finding the Optimal Production Scale

Determining the optimal production scale is crucial for cost - effectiveness. It involves considering factors such as market demand, product lifespan, and initial investment. A market research firm, Frost & Sullivan, recommends conducting a detailed cost - volume - profit analysis to find the break - even point and the production volume that maximizes profit. This analysis takes into account the fixed costs (mold making, equipment), variable costs (materials, labor), and expected selling price of the product.

The Role of Injection Molding Prototype Cost in Mold Making

The injection molding prototype cost plays a vital role in mold making. It serves as an indicator for molders to assess the feasibility of a project. A high prototype cost may signal that the mold design is too complex or that the chosen materials are not cost - effective. By understanding the cost components of the prototype, molders can make adjustments to the mold design or material selection to reduce costs without sacrificing quality. For example, if the cost of a complex mold is too high, the molder may suggest simplifying the part design or using a different mold material.

Industry - Specific FAQs

Q1: How can I reduce the cost of a complex mold?

A1: Simplify the part design by eliminating unnecessary features. Work with an experienced mold designer who can optimize the mold structure. Consider using standard mold components whenever possible to reduce custom machining. Also, explore alternative manufacturing processes for complex features, such as 3D printing the mold inserts.

Q2: Are there any cost - effective alternatives to expensive engineering plastics?

A2: Yes, in some cases, blends of common plastics can offer similar properties at a lower cost. For example, a blend of ABS and PC can provide a balance of impact resistance and heat resistance. Additionally, look into new materials that are emerging in the market, which may offer cost - performance advantages.

Q3: How do I determine the right production scale for my product?

A3: Conduct market research to estimate the demand for your product. Analyze the cost - volume - profit relationship, taking into account the fixed and variable costs. Consider the product's lifecycle and the potential for future market growth. You may also want to start with a smaller production run and gradually increase the volume as the market demand becomes clearer.

Q4: Can I use recycled materials in injection molding without sacrificing quality?

A4: Yes, but it requires careful selection and processing. Make sure the recycled materials have consistent properties. Work with a supplier who can provide high - quality recycled plastics. You may also need to adjust the injection molding process parameters, such as temperature and pressure, to ensure proper molding.

Q5: What are the hidden costs in injection molding that I should be aware of?

A5: Hidden costs can include mold maintenance and repair, tooling changes, quality control inspections, and secondary operations like painting or assembly. Also, factor in the cost of storage for the molds and finished products. Changes in material prices over time can also be a hidden cost factor.

Conclusion: Mastering Injection Molding Prototype Costs

Injection molding prototype costs are influenced by a combination of mold complexity, material selection, and production scale. By carefully evaluating these factors, businesses can uncover opportunities for cost reduction. Working with experts in mold design, material science, and production planning can provide valuable insights. Remember, a well - thought - out approach to managing injection molding prototype costs can lead to more efficient product development and a competitive edge in the market.
