Single Cavity vs Multi Cavity Mold
In injection molding projects, the number of mold cavities determines its structure and characteristics.
Initially, single-cavity molds were commonly used for small batch production of single products.
However, as market competition intensifies and consumer demand diversifies, a single production model becomes insufficient.Multi cavity mold, with multiple cavities in a single mold, can produce multiple products simultaneously, significantly improving
However, as market competition intensifies and consumer demand diversifies, a single production model becomes insufficient.Multi cavity mold, with multiple cavities in a single mold, can produce multiple products simultaneously, significantly improving
production efficiency and shortening production cycles, bringing substantial economic benefits to injection molding companies.

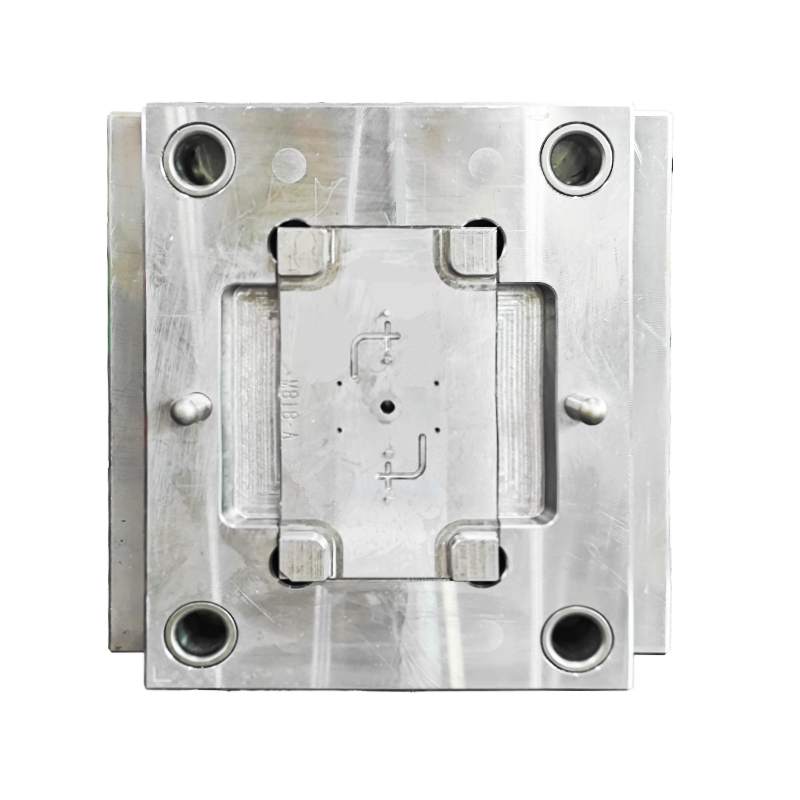

What Is Single Cavity Mold?
A single cavity mold is a mold structure designed for manufacturing individual parts, containing only one cavity. It is suitable for
A single cavity mold is a mold structure designed for manufacturing individual parts, containing only one cavity. It is suitable for
producing smaller quantities of parts.
This mold structure is relatively simple and has a lower cost, but its production efficiency is relatively low, making it ideal for situations
where product diversity is high and production batches are small.
In the plastic processing industry, single cavity molds are also known as single parting surface injection molds.Shorter lead times for
mold fabrication and testing,Easier to modify or adjust for design changes.
What Is Multi Cavity Mold?
A multi cavity mold refers to a mold with two or more cavities, capable of simultaneously producing multiple identical or different products in a single molding process,Produces multiple parts simultaneously, reducing cycle time and increasing output.
A multi cavity mold refers to a mold with two or more cavities, capable of simultaneously producing multiple identical or different products in a single molding process,Produces multiple parts simultaneously, reducing cycle time and increasing output.
In multi-cavity injection molding, the mold design includes runners and gates that allow molten plastic material to flow to each cavity with similar filling, packing, holding, and cooling times, ensuring consistency in the quality of plastic products within each cavity.
The difference between single-cavity mold and multi-cavity mold
Advantages Of Single Cavity Mold
The specific advantages of single cavity mold are as follows:
- Simplicity:Easier to design, manufacture, and maintain compared to multi-cavity molds.
- Cost-Effective for Low Volumes:Ideal for small production runs or prototyping due to lower upfront costs.
- Flexibility:Easier to modify or adjust for design changes,Easy control of process parameters,
Additionally, single cavity molds are suitable for special processes such as two-color injection molding.
This technology allows for the production of products with two different materials while simplifying mold design and reducing the working space required for the injection molding machine, further lowering investment and energy consumption.
Advantages Of Multi Cavity Mold
Multi-cavity molds have significant advantages in production efficiency and cost:
- Increased Production Efficiency:Multi-cavity mold can significantly boost the production capacity of injection-molded products, typically increasing capacity by 60-80%.
- Reduced Production Costs:By controlling the unit cost of molded parts, multi cavity molds effectively reduce production costs.
- Improved Product Quality:In multi cavity injection molds, the runner system is usually designed in an “H” shape, which helps enhance production efficiency and product quality.
With these advantages, multi cavity molds have greater competitiveness in large-scale production.
| Aspect | Multi-Cavity Mold | Single-Cavity Mold |
|---|---|---|
| Number of Cavities | 2 or more | 1 |
| Production Volume | High | Low to medium |
| Initial Cost | Higher | Lower |
| Per-Unit Cost | Lower for large volumes | Higher for large volumes |
| Design Complexity | Complex | Simple |
| Lead Time | Longer | Shorter |
| Flexibility | Harder to modify | Easier to modify |
| Risk of Defects | Higher | Lower |
| Applications | Mass production, high-volume orders | Prototyping, low-volume production |
