Types of Thread Taps: A Comprehensive Guide

Introduction

Thread taps are essential tools in machining and manufacturing, used to create internal threads in pre-drilled holes. With various types of thread taps available, each designed for specific applications and materials, understanding their differences is crucial for achieving precise and efficient threading. This article explores the different types of thread taps, their features, and their ideal use cases.

1. Hand Taps

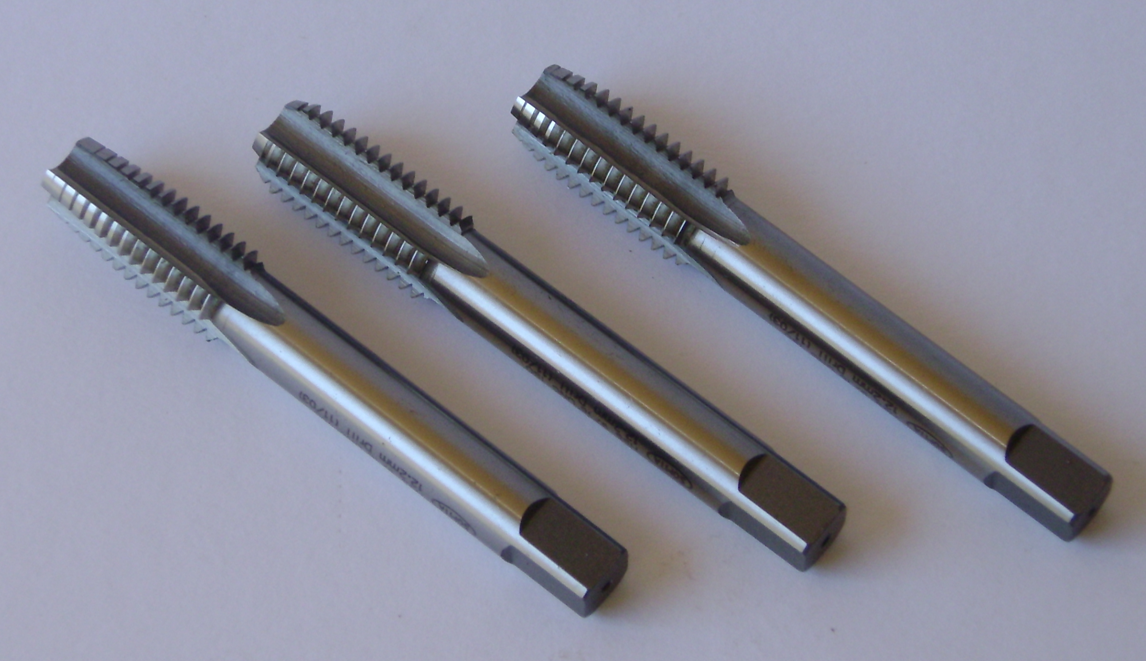

Hand taps are the most common type of thread tap and are designed for manual use with a tap wrench. They are typically sold in sets of three (taper, plug, and bottoming taps) to gradually cut threads into a hole.

Taper Tap

• Features: Tapered end with 7-10 chamfered threads.
• Applications: Starting threads and aligning the tap with the hole.
• Ideal For: Through holes or starting threads in blind holes.

Plug Tap

• Features: Shorter chamfer (3-5 threads) than a taper tap.
• Applications: Cutting threads closer to the bottom of the hole.
• Ideal For: Both through and blind holes.

Bottoming Tap

• Features: Very short chamfer (1-2 threads).
• Applications: Cutting threads to the bottom of blind holes.
• Ideal For: Blind holes, requires a starter tap (taper or plug) to begin threading.

2. Machine Taps

Machine taps are designed for use with power tools or CNC machines. They are stronger and faster than hand taps and are used for high-volume production.

Spiral Point Tap (Gun Tap)

• Features: Spiral flute that pushes chips forward.
• Applications: Ideal for through holes as chips are ejected ahead of the tap.
• Ideal For: CNC machining and high-volume production.

Spiral Flute Tap

• Features: Spiral flute that pulls chips upward and out of the hole.
• Applications: Best for blind holes or materials that produce long chips (e.g., aluminum).
• Ideal For: Blind holes and materials with long chips.

Straight Flute Tap

• Features: Straight flutes for general-purpose threading.
• Applications: Suitable for materials that produce short chips (e.g., cast iron).
• Ideal For: General-purpose threading in materials with short chips.

3. Pipe Taps

Pipe taps are used to create threads for pipe fittings and are designed to handle the specific requirements of piping systems.

Taper Pipe Tap

• Features: Tapered threads that create a tight seal.
• Applications: Used for threading tapered pipe fittings.
• Ideal For: Pipe fittings requiring a tight seal.

Straight Pipe Tap

• Features: Straight threads for non-tapered pipe fittings.
• Applications: Used for threading straight pipe fittings.
• Ideal For: Pipe fittings that do not require a tapered seal.

4. Forming Taps

Forming taps, also known as roll taps, create threads by displacing material rather than cutting it. This results in stronger threads with no chips produced.

Features of Forming Taps

• No Chip Production: Displaces material to form threads.
• Stronger Threads: Creates threads with improved strength and durability.
• Applications: Ideal for ductile materials like aluminum, brass, and mild steel.

5. Special-Purpose Taps

Special-purpose taps are designed for unique applications and materials, offering specialized solutions for challenging threading tasks.

Pulley Taps

• Features: Long shank for reaching deep holes.
• Applications: Used for threading pulley hubs and other deep holes.

Interrupted Thread Taps

• Features: Alternating cutting edges to reduce friction and heat.
• Applications: Ideal for threading hard or abrasive materials.

Conclusion

Thread taps are indispensable tools in machining and manufacturing, with each type offering unique features and benefits tailored to specific applications. Whether you're working with hand taps for manual threading, machine taps for high-volume production, or specialized taps for unique materials, understanding the different types of thread taps is essential for achieving precise and efficient results. By selecting the appropriate tap for your needs, you can ensure high-quality threading and optimal performance in your projects.
