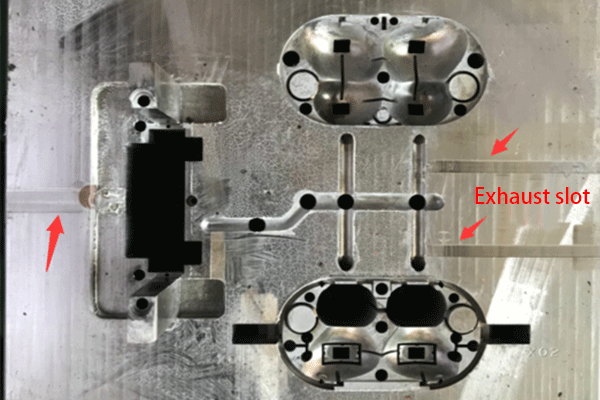

In the high-precision world of injection molding, exhaust systems play a critical yet often underappreciated role in ensuring product quality and manufacturing efficiency. These specialized channels in molds serve as escape routes for trapped air and gases during the injection process.

Key Purposes of Mold Exhaust Systems

Exhaust systems in injection molds serve three vital functions:

• Air evacuation: Removing trapped air to prevent voids and incomplete filling
• Gas release: Allowing volatile gases from melted plastic to escape
• Pressure equalization: Maintaining balanced pressure throughout the mold cavity

Critical Benefits for Manufacturing

1. Eliminating Common Production Defects

Proper exhaust systems prevent:

• Burn marks from compressed hot air
• Surface blemishes and flow lines
• Short shots from incomplete filling
• Warping due to uneven cooling

2. Enhancing Production Efficiency

Effective exhaust systems contribute to:

• Faster cycle times by improving material flow
• Reduced scrap rates and material waste
• Longer mold lifespan by preventing gas corrosion
• Lower energy consumption through optimized processing

3. Ensuring Consistent Product Quality

Exhaust systems help maintain:

• Dimensional accuracy of finished parts
• Superior surface finish
• Uniform material density
• Consistent mechanical properties

Industry-Specific Applications

Precision Components

For automotive and aerospace parts where tolerances are measured in microns, exhaust systems ensure flawless reproduction of complex geometries.

Medical Devices

In sterile medical applications, proper venting prevents contamination risks from trapped gases and ensures perfect surface quality.

Consumer Products

From electronics housings to food containers, exhaust systems deliver the aesthetic perfection consumers demand.

Conclusion

While often occupying less than 1% of a mold's total volume, exhaust systems deliver 100% of the air and gas removal needed for perfect plastic parts. Their proper design and implementation separate mediocre molding from manufacturing excellence, making them an indispensable element in modern injection molding systems.
