Wire cut steel, often associated with wire EDM (Electrical Discharge Machining), is a precision machining process used to cut complex shapes and fine details in steel and other conductive materials. This article explores the working principle, advantages, and various uses of wire cut steel in modern manufacturing.

Working Principle

Electrical Discharge Machining (EDM)

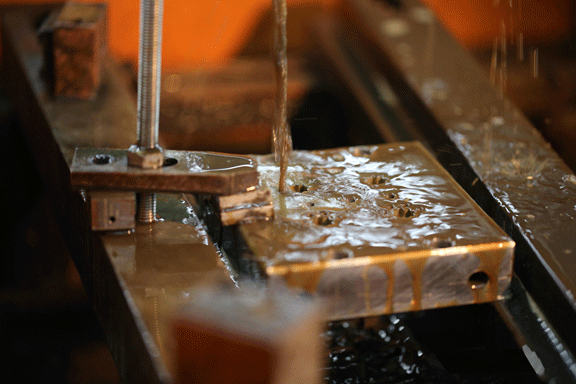

Wire cut steel operates on the principle of Electrical Discharge Machining (EDM). In this process, a thin, electrically charged wire (usually made of brass or copper) is used to cut through the steel workpiece. The wire does not physically touch the workpiece; instead, it generates a series of electrical discharges (sparks) that erode the material.

Dielectric Fluid

A dielectric fluid, typically deionized water, is used to flush away the eroded particles and to cool the workpiece and wire. This fluid also acts as an insulator until a voltage is applied, at which point it becomes conductive, allowing the electrical discharge to occur.

CNC Control

The entire process is controlled by a CNC (Computer Numerical Control) system, which ensures high precision and repeatability. The CNC system guides the wire along the programmed path, enabling the creation of intricate shapes and fine details.

Advantages

High Precision

Wire cut steel offers exceptional precision, with tolerances as tight as ±0.0001 inches. This makes it ideal for applications requiring intricate details and exact dimensions.

Complex Geometries

The process can produce complex geometries that are difficult or impossible to achieve with conventional machining methods. This includes sharp corners, fine details, and intricate patterns.

No Mechanical Stress

Since the wire does not physically contact the workpiece, there is no mechanical stress or deformation. This is particularly beneficial for machining delicate or thin-walled parts.

Material Versatility

Wire cut steel can be used on a wide range of conductive materials, including hardened steel, titanium, and exotic alloys. This versatility makes it a valuable tool in various industries.

Uses

Tool and Die Making

Wire cut steel is extensively used in the tool and die industry to create molds, dies, and punches. The high precision and ability to machine hardened materials make it ideal for producing durable and accurate tooling components.

Aerospace Industry

In the aerospace sector, wire cut steel is used to manufacture complex components such as turbine blades, engine parts, and structural elements. The process's ability to handle tough materials and produce precise parts is crucial for aerospace applications.

Medical Devices

The medical industry benefits from wire cut steel in the production of surgical instruments, implants, and diagnostic equipment. The high precision and ability to create intricate designs are essential for medical device manufacturing.

Electronics

Wire cut steel is also used in the electronics industry to produce fine components such as connectors, contacts, and micro-parts. The process's ability to achieve tight tolerances and intricate details is vital for electronic applications.

Conclusion

Wire cut steel, through the wire EDM process, offers a highly precise and versatile method for machining complex and intricate parts. Its advantages, including high precision, the ability to create complex geometries, and no mechanical stress, make it an invaluable tool in various industries such as tool and die making, aerospace, medical devices, and electronics. By leveraging the unique capabilities of wire cut steel, manufacturers can achieve superior quality and performance in their products.
