Introduction

Mold making typically follows a structured, precision-focused process tailored to its end use (e.g., plastic injection). It starts with design & engineering: Using CAD software, experts create a 3D model of the mold, refining details like cavities, gates, and cooling channels to match the target part’s specs.

Next comes material selection—high-grade steel (for high-volume production) or aluminum (for prototypes/small batches) is chosen for durability and heat resistance. Then, precision machining takes place: CNC mills, EDM machines, or lathes shape the material into the mold’s core and cavity, ensuring tight tolerances (often to 0.001 inches) for consistent part quality.

After machining, finishing steps follow: Polishing smooths cavity surfaces to avoid defects in molded parts, while heat treatment hardens steel molds for longer life. Finally, quality testing occurs—dimensional checks, pressure tests, or test runs with plastic resin verify the mold works as intended, ready for full-scale production.

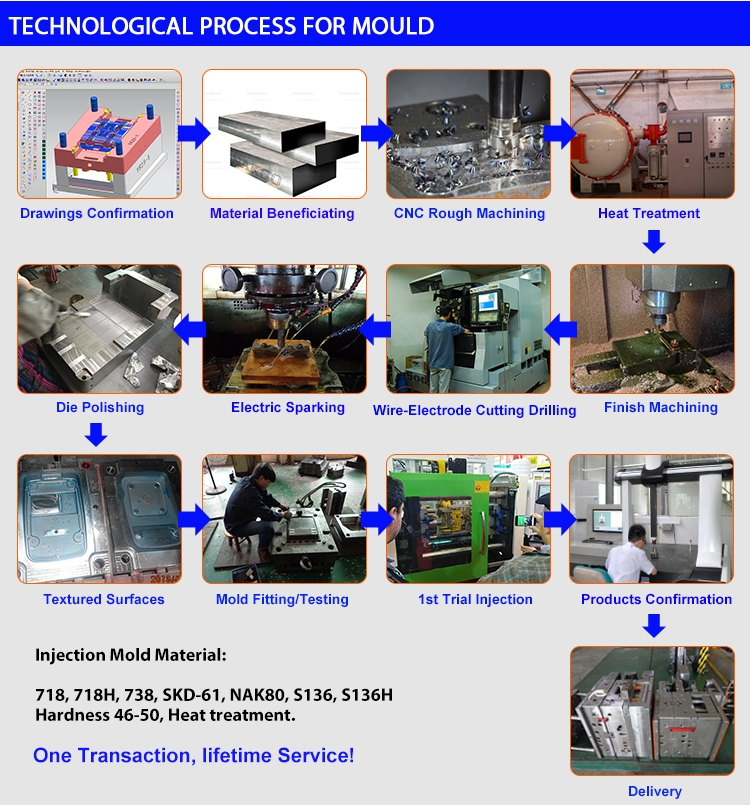

The Step - by - Step Process of Making an Injection Mold

Design Phase

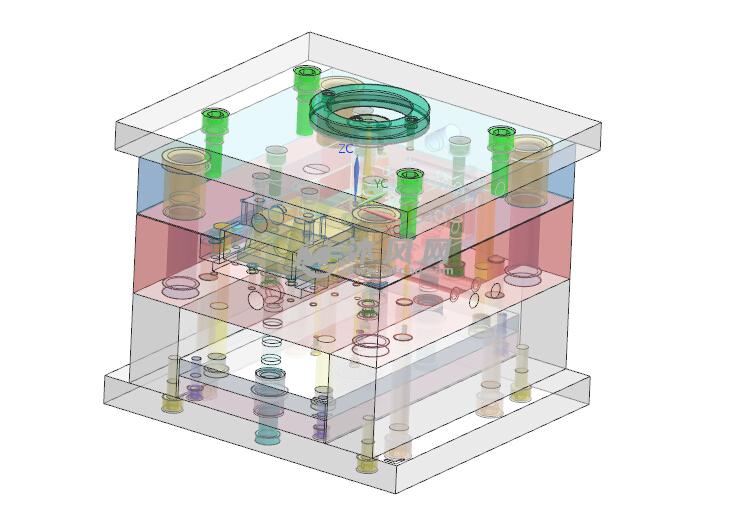

The journey of creating an injection mold commences with the Design Phase. First and foremost, product designers utilize advanced software like CAD (Computer - Aided Design) to create a 3D model of the product. This model serves as the foundation for the entire injection - molding process, as it defines all the product's geometric details, dimensions, and surface finishes.

Once the product model is finalized, mold designers step in. They analyze the product's design to determine the most suitable mold structure. This involves considering factors such as the product's shape complexity, wall thickness, and any undercuts or special features. For example, if the product has intricate internal structures, the mold might require side - actions or slider mechanisms to enable the removal of the molded part.

CAD/CAM (Computer - Aided Manufacturing) technology plays a crucial role in this phase. It allows designers to simulate the injection - molding process virtually. They can analyze the flow of the molten plastic within the mold, predict potential areas of short - shots (where the plastic doesn't fully fill the mold cavity), air traps, or excessive shear stress. Based on these simulations, they can make adjustments to the mold design, such as modifying the gate locations (the points where the plastic enters the mold cavity) or adding venting channels to improve the quality of the final product.

Material Selection

After the design is complete, the next critical step is Material Selection. The choice of material for an injection mold depends on several factors, with the most prominent being the type of plastic to be molded, the production volume, and the expected lifespan of the mold.

Steel is one of the most commonly used materials for injection molds. For instance, P20 steel, a pre - hardened steel with a hardness of around 30 - 35 HRC (Rockwell Hardness C - scale), is popular for medium - production - volume applications. It offers good machinability and moderate wear resistance, making it suitable for molding common plastics like ABS (Acrylonitrile Butadiene Styrene) and PP (Polypropylene).

For higher - production - volume runs or when molding abrasive plastics (such as those filled with glass fibers), more durable steels like H13 are preferred. H13, a hot - work tool steel, can be heat - treated to a higher hardness (up to 48 - 52 HRC), providing excellent resistance to heat, wear, and thermal fatigue. This makes it ideal for molds that will be subjected to repeated cycles of heating and cooling during the injection - molding process.

Aluminum is another option, especially for low - production - volume or prototype molds. Aluminum molds are lighter and easier to machine compared to steel, which results in shorter lead times and lower production costs. However, they have lower hardness and wear resistance, so they are not suitable for long - term, high - volume production.

Machining

Once the material is selected, the Machining process begins. Machining is a multi - step process that involves both traditional and advanced manufacturing techniques to transform the raw material into a functional mold.

Traditional machining operations such as turning, milling, and drilling are often used for the initial shaping of the mold components. Turning is used to create cylindrical features, like the cores or pins in the mold. Milling is employed to machine flat surfaces, cavities, and complex 3D geometries. For example, a CNC (Computer Numerical Control) milling machine can precisely cut the mold cavity to match the shape of the product, with tolerances as tight as ±0.01 mm. Drilling is used to create holes for various purposes, such as for coolant channels, ejector pins, or for fastening the mold components together.

In addition to traditional machining, special - purpose machining techniques are also utilized, especially for creating intricate details that are difficult to achieve with conventional methods. Electrical Discharge Machining (EDM) is one such technique. EDM uses electrical discharges (sparks) to erode the metal, allowing for the creation of highly detailed and precise features, such as fine - textured surfaces or complex undercut shapes. Wire - EDM, a type of EDM, is particularly useful for cutting intricate profiles in the mold, like the shape of a small and complex plastic part.

After the rough machining is complete, the mold components often undergo finishing operations such as grinding and polishing. Grinding is used to achieve high - precision flatness and dimensional accuracy, while polishing is done to create a smooth surface finish, which is crucial for the quality of the molded product. A polished mold surface can result in a plastic part with a high - gloss finish and reduced surface defects.

Heat Treatment

Following machining, the mold components are typically subjected to Heat Treatment. Heat treatment is a critical process that significantly enhances the mechanical properties of the mold material. The two most common heat - treatment processes for injection molds are quenching and tempering.

Quenching involves heating the mold components to a high temperature (usually above the critical temperature of the steel) and then rapidly cooling them. This rapid cooling transforms the microstructure of the steel, increasing its hardness and strength. However, quenching also introduces internal stresses in the material, which can make the mold brittle and prone to cracking.

To relieve these internal stresses and improve the toughness of the mold, tempering is carried out. Tempering is a process of reheating the quenched mold components to a lower temperature (usually between 150 - 650°C, depending on the steel type) and then cooling them slowly. This reduces the brittleness caused by quenching while maintaining a significant portion of the increased hardness and strength.

For some molds, additional heat - treatment processes such as nitriding may be employed. Nitriding involves introducing nitrogen atoms into the surface layer of the mold material. This creates a hard, wear - resistant, and corrosion - resistant surface layer, which can greatly extend the lifespan of the mold, especially when molding abrasive or corrosive plastics.

Assembly

After the individual mold components have been machined and heat - treated, they are ready for Assembly. The assembly process is a meticulous task that requires precision and attention to detail.

First, all the mold components are thoroughly cleaned to remove any machining debris, oil, or contaminants. This is crucial as even small particles can affect the performance of the mold and the quality of the molded products. After cleaning, the components are often inspected for any signs of damage or defects that may have occurred during machining or heat treatment.

The actual assembly begins with the alignment and fastening of the core and cavity plates, which form the main structure of the mold. These plates are typically held together using high - strength bolts and dowel pins to ensure precise alignment. The ejector system, which is responsible for removing the molded part from the mold, is then installed. This includes components such as ejector pins, ejector plates, and return springs.

Any additional components, such as slider mechanisms for creating undercuts, hot runner systems for efficient plastic injection, or cooling channels for regulating the mold temperature, are also installed at this stage. Each component must be assembled with the utmost precision to ensure that the mold functions properly. For example, the slider mechanisms must move smoothly and accurately to form the desired undercut features in the molded part, and the cooling channels must be leak - free to maintain consistent mold temperature.

Once the assembly is complete, the mold is lubricated with a suitable mold release agent or lubricant to facilitate the smooth ejection of the molded parts.

Testing and Validation

The final step in the mold - making process is Testing and Validation. This step is essential to ensure that the mold is capable of producing high - quality parts consistently.

The first stage of testing is usually a dry run, where the mold is mounted on an injection - molding machine and cycled through several opening and closing operations without injecting any plastic. This helps to check the mechanical operation of the mold, such as the smooth movement of the ejector system, slider mechanisms, and the proper alignment of the mold plates.

After the dry run, the mold undergoes a series of trial injections. During these trial runs, different process parameters such as injection pressure, injection speed, melt temperature, and cooling time are carefully adjusted and monitored. The molded parts are then inspected for various quality parameters, including dimensional accuracy, surface finish, and the presence of any defects such as short - shots, flash (excess plastic around the part), or warping.

If any defects are detected, the mold and the injection - molding process are analyzed to identify the root cause. This may involve making adjustments to the mold, such as modifying the gate size, adding or relocating vents, or adjusting the cooling channels. It could also mean optimizing the injection - molding process parameters. The mold is then retested until the desired quality standards are met. Only when the mold has passed all the tests and validation procedures is it considered ready for mass production.

Characteristics of Custom Injection Molding

High Precision

Custom injection molding is renowned for its high - precision capabilities. With the aid of advanced CAD/CAM software and state - of - the - art machining equipment, molds can be crafted to achieve extremely tight tolerances, often within the range of ±0.01mm or even better in some cases. For example, in the production of small, intricate components for the electronics industry, such as connectors or sensor housings, the high precision of custom injection molds ensures that each part fits perfectly into the final product assembly. This level of precision not only improves the functionality of the end - product but also reduces the need for secondary processing, saving both time and cost.

Versatility in Design

One of the greatest advantages of custom injection molding is its versatility in design. Whether the product has a simple geometric shape or highly complex features with undercuts, ribs, or thin - walled sections, custom molds can be designed and manufactured to meet the requirements. For instance, in the automotive industry, parts like interior dashboard components often have complex shapes and multiple functions integrated into a single piece. Custom injection molds can be engineered to create these parts with all their intricate details, such as precise mounting points, textured surfaces for a better grip, and hidden channels for wiring or air circulation. This flexibility in design allows manufacturers to bring innovative product concepts to life.

Material Compatibility

Custom injection molds are compatible with a wide range of plastic materials, including common thermoplastics like ABS, PP, PE, and more specialized materials such as engineering plastics (e.g., PEEK, LCP) and elastomers. Each material has its own unique properties, such as melting point, viscosity, shrinkage rate, and mechanical strength. Custom injection molding processes can be fine - tuned to accommodate these differences. For example, when molding high - temperature engineering plastics like PEEK, the mold needs to be able to withstand higher processing temperatures, and the injection parameters need to be adjusted to ensure proper flow and solidification of the material. This material compatibility makes custom injection molding suitable for a diverse range of applications, from consumer goods to aerospace components.

Cost - effectiveness in Mass Production

Although the initial investment in custom injection mold design and manufacturing can be relatively high, it becomes highly cost - effective in mass production scenarios. As the number of parts produced increases, the cost of the mold is spread out over a larger quantity of products. For example, if a custom injection mold costs \(50,000 and is used to produce one million parts, the cost per part attributed to the mold is only \)0.05. Additionally, the high - efficiency and high - precision nature of injection molding reduce material waste and production errors, further lowering the overall production cost per unit. This cost - effectiveness makes custom injection molding an ideal choice for companies looking to produce large volumes of plastic products.

Common Parameters of General Injection Molds

Frequently Asked Questions

What are the common materials for injection molds?

Common materials for injection molds include steel, aluminum alloy, etc. Steel, such as P20 and H13, is widely used. P20, with a pre - hardened state and a hardness of around 30 - 35 HRC, is suitable for medium - production - volume applications and common plastics like ABS and PP. H13, a hot - work tool steel with a hardness up to 48 - 52 HRC after heat treatment, is ideal for high - production - volume runs or molding abrasive plastics. Aluminum alloy, on the other hand, is lighter and easier to machine, making it suitable for low - production - volume or prototype molds, but it has lower hardness and wear resistance compared to steel.

How to maintain an injection mold?

Regular maintenance of injection molds is crucial. First, keep the mold clean. After each production cycle, use soft tools like copper brushes or soft cloths to remove plastic residues from the mold cavity, 分型面 (Parting Line, P/L), and ejector pin holes. Avoid using hard tools to prevent scratching the mold surface. Second, lubricate moving parts regularly. Components such as ejector pins, guide pillars, and sliders should be coated with high - temperature grease (such as molybdenum disulfide) to ensure smooth movement and reduce wear. Third, conduct regular inspections. Check for any signs of wear, damage, or misalignment in the mold, such as bent ejector pins, loose guide sleeves, or uneven parting surfaces. Also, pay attention to the cooling system to ensure that the cooling channels are unobstructed.

What factors affect the quality of injection - molded products?

Several factors impact the quality of injection - molded products. Mold quality is fundamental. A well - designed and precisely manufactured mold ensures accurate part dimensions and good surface finish. If the mold has defects like improper venting or rough surfaces, it will directly affect the product quality. Material performance also matters. Different plastic materials have different melting points, viscosities, and shrinkage rates. For example, materials with high viscosity may be difficult to fill the mold cavity completely, leading to short - shots. Process parameters play a vital role. Injection pressure, injection speed, melt temperature, and cooling time all need to be carefully adjusted. Too high an injection pressure can cause part deformation and flash, while an inappropriate cooling time can result in warping. Equipment condition is another factor. A malfunctioning injection - molding machine, such as inconsistent screw rotation or inaccurate pressure control, can lead to quality issues in the molded products.

Conclusion

In conclusion, the process of making an injection mold is a complex and highly technical one, involving multiple steps from design to testing. Custom injection molds, with their high - precision, flexible design, and material - compatibility features, have become an essential part of modern manufacturing. They enable the production of a wide variety of plastic products with high quality and efficiency, especially in mass - production scenarios. The parameters of injection molds, such as mold size, cavity number, and injection pressure, play a crucial role in determining the quality and production efficiency of the final products.

Whether you are a manufacturer looking to optimize your production process or an enthusiast interested in the world of manufacturing, understanding the ins and outs of injection - mold making can open up new possibilities. We encourage you to explore further into this fascinating field and discover the endless potential of injection molding in shaping the products of our future.
