A Comprehensive Guide to Injection Molding of Consumer Electronics
author: LiuJianXin
2025-05-22

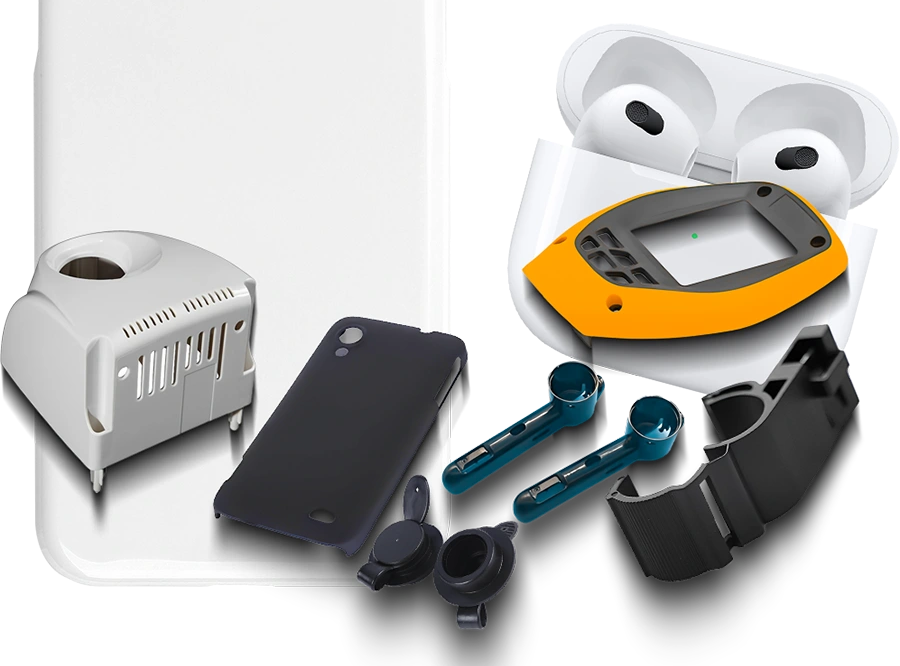

Injection molding is the backbone of modern consumer electronics manufacturing, enabling the production of complex, precise, and aesthetically appealing components at scale. From smartphone cases to wearable device housings, this process transforms thermoplastic polymers into functional parts with unmatched efficiency. This guide explores the technical nuances of injection molding, with a special focus on our proprietary dual-shot injection molding capabilities, helping you make informed decisions for your next electronics project.
- Basics of Injection Molding in Consumer Electronics
- Key Process Parameters in Injection Molding
- Dual-Shot Injection Molding: Our Signature Process
- Comparison with Other Molding Techniques
- Expert Insights on Injection Molding Excellence
- Industry FAQs for Injection Molding Projects
- Conclusion
1. Basics of Injection Molding in Consumer Electronics
Injection molding for consumer electronics involves three core stages:
- Mold Design: Engineers create molds using CAD software, incorporating features like cooling channels and ejector pins. Critical design factors include wall thickness (typically 0.5-3mm to balance strength and material cost) and draft angles (1-2° for easy part release).
- Material Melting: Polymers like ABS, PC, and TPE are heated in the injection unit until they form a molten state.
- Injection & Cooling: Molten plastic is injected into the mold under high pressure (50-200 MPa), then cooled to solidify before the mold opens to eject the finished part.
Key benefits include high production speed (up to 100 cycles/hour for simple parts), design flexibility, and cost-effectiveness for large volumes (unit costs decrease significantly as production scales).
2. Key Process Parameters in Injection Molding
Controlling these parameters ensures part quality and consistency:
|
Parameter
|
Typical Range
|
Impact on Part Quality
|
Optimization Goal
|
|
Melt Temperature
|
180-300°C (varies by material)
|
Affects flowability; too high causes material degradation
|
Match material's recommended range
|
|
Injection Pressure
|
50-200 MPa
|
Ensures complete mold filling; excessive pressure causes flash
|
Minimal pressure for full filling
|
|
Cooling Time
|
10-40 seconds
|
Influences cycle time and dimensional stability
|
Balance speed with part rigidity
|
|
Mold Temperature
|
40-120°C
|
Affects surface finish and internal stress
|
Higher for glossy surfaces
|
3. Dual-Shot Injection Molding: Our Signature Process
3.1 What is Dual-Shot Injection Molding?
Dual-shot (or two-shot) molding produces parts with two different materials or colors in a single process, using a specialized injection machine with rotating molds or multiple injection units. This eliminates secondary assembly steps like bonding or painting.
3.2 Process Flow of Dual-Shot Molding
- First shot: The primary material (e.g., rigid PC for structural strength) is injected into the mold.
- Mold rotation: The partially solidified first-shot part is rotated to a second station.
- Second shot: A secondary material (e.g., soft TPE for grip or rubberized texture) is injected around the first layer, bonding chemically or mechanically.
3.3 Core Advantages of Dual-Shot Technology
- Aesthetic Excellence: Seamless color transitions and multi-tone designs (e.g., smartphone frames with contrasting accent colors).
- Functional Integration: Combines rigid structural components with soft-touch areas (e.g., earbud cases with rubberized grips).
- Durability: Eliminates adhesive failures by bonding materials during molding.
- Production Efficiency: Reduces post-processing steps, cutting assembly time by up to 40%.
4.4 Typical Applications in Consumer Electronics
- Smartphone cases with colored logos integrated into the body
- Wearable device bezels combining metal-like finishes (via metallic polymers) with flexible bands
- Remote control buttons with soft-touch surfaces for improved user experience
5. Comparison with Other Molding Techniques
|
Technique
|
Advantages
|
Disadvantages
|
Best For
|
|
Dual-Shot Molding
|
Multi-material integration, superior aesthetics, fewer assembly steps
|
Higher initial mold cost, complex machine setup
|
High-design products (phones, wearables)
|
|
Single-Shot Molding
|
Lower mold cost, simpler process
|
Limited to one material/color, requires post-processing for multi-tone parts
|
Basic components (battery covers, simple housings)
|
|
CNC Machining
|
High precision for low-volume prototypes
|
Slow production, expensive for large volumes, material waste
|
Prototyping, metal components
|
|
3D Printing
|
Unlimited design freedom, no mold needed
|
Low strength, rough surface finish, slow build times
|
Concept models, low-volume custom parts
|
6. Expert Insights on Injection Molding Excellence
"Successful injection molding in consumer electronics requires tight collaboration between designers and manufacturers from the early stages," says Dr. Sarah Chen, a leading polymer engineer. "For dual-shot projects, material compatibility and shrinkage rate matching are critical to avoid delamination. Designers should prioritize gradual wall thickness transitions and use mold flow analysis to predict potential issues."
John Lee, Operations Manager at XYZ Molding, adds: "Modern consumers demand both form and function. Dual-shot molding allows us to deliver premium aesthetics without compromising on durability—key for high-end electronics where user experience is paramount."
7. Industry FAQs for Injection Molding Projects
How do I choose the right material for my dual-shot part?
Consider mechanical properties (strength, heat resistance), aesthetic needs (gloss, transparency), and cost. Our engineers recommend testing material combinations via mold flow simulation to ensure compatibility.
What's the typical lead time for dual-shot mold development?
Lead times range from 4-8 weeks, depending on part complexity. Advanced 3D printing for mold inserts can reduce development time by 20%.
Can dual-shot molding handle metal inserts?
Yes, but requires precise mold design to secure inserts during the first shot. This is commonly used for components needing EMI shielding or structural reinforcement.
How to achieve consistent color matching in dual-shot parts?
Use standardized color libraries (e.g., Pantone) and conduct color validation with physical samples. Temperature control during molding also impacts color consistency.
Is dual-shot molding environmentally friendly?
Yes—eliminating secondary processes reduces energy use and waste. Many materials used (like recyclable PC/ABS blends) are now eco-friendly by design.
8. Conclusion
Injection molding, particularly dual-shot technology, offers unmatched versatility for consumer electronics, blending innovation in design with operational efficiency. By mastering process parameters, leveraging material science, and embracing advanced techniques like dual-shot molding, manufacturers can deliver products that meet the evolving demands of today's market—where quality, aesthetics, and functionality are non-negotiable.
Whether you're developing a next-gen smartphone or a sleek wearable device, partnering with experts in dual-shot injection molding ensures your vision transforms into reality with precision and scale.
