Unveiling the Secrets of Electrical Sparks: Mastering EDM Machining Time for Injection Molds
author: LiuJianXin
2025-05-14
In the world of injection mold manufacturing, precision and efficiency are non-negotiable. Electrical Discharge Machining (EDM) has revolutionized the industry by enabling the production of intricate mold components with unmatched accuracy—even for materials too hard for traditional machining. At the core of EDM lies the controlled use of electrical sparks, which erode material through repeated discharges between an electrode and the workpiece. But how do these sparks impact machining time, and what strategies can manufacturers use to optimize productivity without compromising quality?
- The Science Behind Electrical Sparks in EDM
- Key Factors Influencing EDM Machining Time
- Expert Insights: Optimizing EDM Machining Time from Industry Leaders
- General EDM Machining Parameter Table for Injection Molds
- FAQs: Common Questions About EDM Machining Time
1. The Science Behind Electrical Sparks in EDM

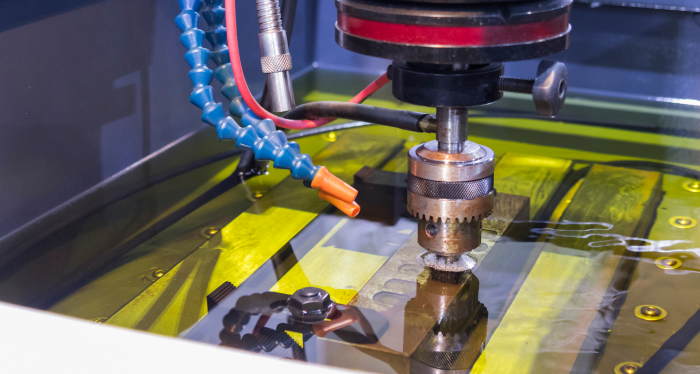

EDM operates on a simple yet fascinating principle: when a high-frequency electrical current is applied between the electrode (usually made of copper or graphite) and the conductive workpiece (e.g., mold steel), it creates tiny sparks that melt and vaporize material. Each spark—lasting just microseconds—removes a small amount of material, gradually shaping the workpiece into the desired form. The frequency, intensity, and duration of these sparks are critical to controlling both machining speed and surface finish, especially for complex injection mold features like thin walls, deep ribs, or intricate textures.
2. Key Factors Influencing EDM Machining Time
2.1 Material Properties of Injection Mold Components
The hardness and conductivity of the workpiece material directly affect EDM performance. For example:
- Harder steels (e.g., H13 tool steel with 50-55 HRC) require lower discharge energy to prevent electrode wear, which can slow down machining.
- Poorly conductive materials may necessitate higher voltage settings, increasing energy consumption and machining time.
2.2 Discharge Parameters: The Heart of Spark Control
Adjusting parameters like pulse on time, pulse off time, and peak current is key to balancing speed and precision:
- Longer pulse on time increases material removal rate (MRR) but risks deeper craters and rougher surfaces.
- Shorter pulse off time reduces idle periods between sparks but may cause electrode overheating and wear.
2.3 Electrode Design and Wear Management
A well-designed electrode minimizes wear and machining cycles:
- Using graphite electrodes for high-speed roughing (due to lower wear) and copper for finishing improves efficiency.
- Incorporating taper angles or rib structures in electrodes reduces sparking resistance, especially in deep cavity molds.
2.4 Machining Accuracy vs. Speed Trade-offs
Tighter tolerances (e.g., ±0.001mm for optical lens molds) require smaller 火花间隙 (spark gaps) and finer discharges, which inherently increase machining time. Manufacturers must prioritize design requirements—for example, accepting a slightly rougher surface (Ra 0.8μm vs. Ra 0.2μm) during roughing to speed up initial material removal.
3. Expert Insights: Optimizing EDM Machining Time from Industry Leaders
“The biggest time savers for injection mold EDM are proactive parameter tuning and electrode optimization,” said Dr. Maria Gonzalez, Senior Engineer at Global Mold Solutions. “By using an automated spark gap adjustment system during roughing, we have achieved time savings of up to 30% while maintaining a consistent electrode wear rate.”
John Lee, CEO of Precision Mold Tech, added, “Don’t overlook the impact of flushing methods. Proper dielectric fluid flow ensures debris removal, which prevents secondary discharges and reduces downtime. For deep cavity molds, we always use submerged EDM with high pressure flushing to maintain consistent spark efficiency.”
John Lee, CEO of Precision Mold Tech, added, “Don’t overlook the impact of flushing methods. Proper dielectric fluid flow ensures debris removal, which prevents secondary discharges and reduces downtime. For deep cavity molds, we always use submerged EDM with high pressure flushing to maintain consistent spark efficiency.”
4. General EDM Machining Parameter Table for Injection Molds
|
Parameter
|
Roughing (Coarse)
|
Semi-Finishing
|
Finishing (Fine)
|
Impact on Machining Time
|
|
Peak Current
|
20-50
|
10-20
|
2-10
|
Higher current = faster removal
|
|
Pulse On Time
|
200-500
|
50-200
|
10-50
|
Longer pulse = higher MRR
|
|
Pulse Off Time
|
50-100
|
30-50
|
10-30
|
Shorter off time = denser sparks
|
|
Spark Gap
|
50-100
|
20-50
|
5-20
|
Smaller gap = higher precision
|
|
Electrode Material
|
Graphite
|
Graphite/Copper
|
Copper
|
Copper for finer details
|
5. FAQs: Common Questions About EDM Machining Time
Can I reduce EDM machining time without sacrificing mold quality?
Yes—focus on optimizing roughing stages with higher energy settings, then use finishing passes for precision. Automated parameter libraries in modern EDM machines can help balance speed and surface finish.
How does electrode wear affect machining time?
Excessive electrode wear leads to frequent repositioning and tool changes, increasing downtime. Using wear-resistant materials (e.g., isostatic graphite) and proper flushing minimizes this issue.
What’s the biggest challenge in EDM for injection molds with thin features?
Maintaining spark stability in narrow gaps without causing electrode deflection. Using lightweight electrodes and lower discharge energy is critical for delicate structures like micro-fluidic mold channels.
Does the type of dielectric fluid matter for machining speed?
Yes! Synthetic oils offer better thermal conductivity than deionized water, enabling faster heat dissipation and more consistent sparking—especially for high-temperature mold steels.
By mastering the interplay between electrical sparks, material properties, and machine parameters, manufacturers can transform EDM from a time-consuming process into a competitive advantage for injection mold production. Remember: every spark counts in the race for precision and productivity.
