What Is Face Milling?

Introduction to Face Milling

Face milling is a fundamental machining process used in manufacturing to create flat surfaces on a workpiece. This process is essential for producing smooth, precise, and high-quality surfaces, which are critical in various industries such as automotive, aerospace, and machinery manufacturing. Face milling involves the use of a milling machine equipped with a face mill cutter, which removes material from the surface of the workpiece to achieve the desired flatness and finish.

How Face Milling Works

Face milling is performed using a milling machine, which can be either manual or CNC (Computer Numerical Control). The process involves the following steps:

Setup

The workpiece is securely clamped onto the milling machine's worktable. Proper alignment and fixation are crucial to ensure accuracy and prevent movement during the milling process.

Tool Selection

A face mill cutter, which typically has multiple cutting edges (inserts), is selected based on the material of the workpiece and the desired surface finish. The cutter is mounted onto the machine's spindle.

Milling Operation

The spindle rotates the face mill cutter at high speeds, and the cutter is moved across the surface of the workpiece. The cutting edges of the face mill remove material in the form of chips, creating a flat surface. The depth of cut and feed rate are carefully controlled to achieve the desired surface quality and dimensional accuracy.

Finishing

After the initial roughing passes, finishing passes may be performed to achieve a smoother surface finish. This involves using a finer feed rate and possibly a different type of cutter.

Key Components of Face Milling

Several key components and parameters are involved in the face milling process:

Face Mill Cutter

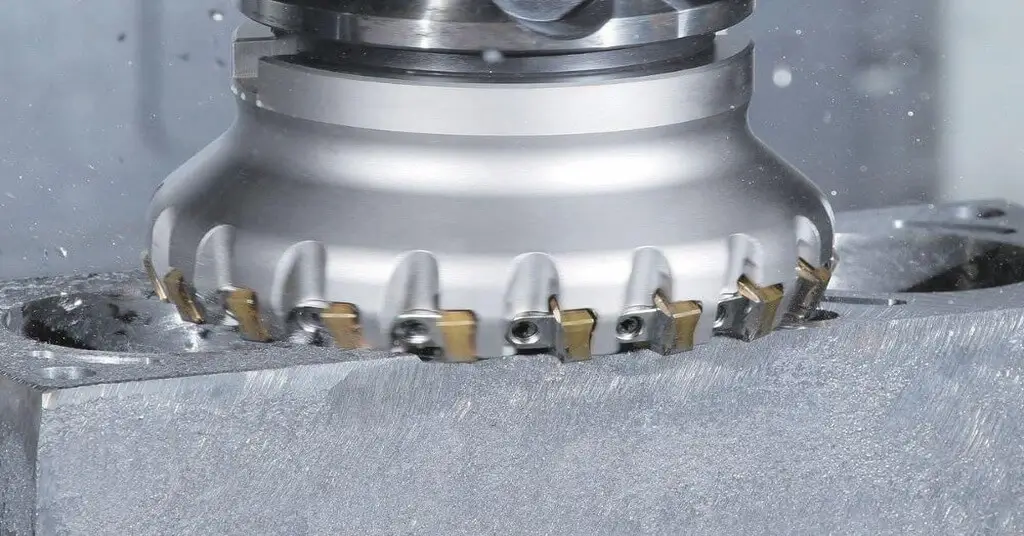

The face mill cutter is the primary tool used in face milling. It consists of a body with multiple cutting inserts made from hard materials such as carbide, ceramic, or high-speed steel. The design and number of inserts can vary depending on the application.

Milling Machine

The milling machine provides the necessary power and precision to perform the face milling operation. CNC milling machines offer higher precision and automation, making them suitable for complex and high-volume production.

Workpiece

The workpiece is the material being machined. It can be made from various materials, including metals, plastics, and composites. The choice of material affects the selection of the cutter and machining parameters.

Cutting Parameters

Cutting parameters such as spindle speed, feed rate, and depth of cut are critical to the success of the face milling process. These parameters must be optimized based on the material and desired outcome.

Advantages of Face Milling

Face milling offers several advantages that make it a preferred machining process for creating flat surfaces:

High Precision

Face milling provides high dimensional accuracy and surface finish, making it suitable for applications requiring tight tolerances.

Versatility

Face milling can be performed on a wide range of materials and workpiece sizes, making it a versatile machining process.

Efficiency

With the use of multi-insert face mill cutters, face milling can remove material quickly and efficiently, reducing machining time and costs.

Surface Quality

Face milling produces smooth and flat surfaces, which are essential for functional and aesthetic purposes in many applications.

Applications of Face Milling

Face milling is used in various industries and applications, including:

Automotive Industry

In the automotive sector, face milling is used to machine engine blocks, cylinder heads, and other components requiring flat and precise surfaces.

Aerospace Industry

The aerospace industry relies on face milling to produce critical components such as wing spars, fuselage sections, and landing gear parts.

Machinery Manufacturing

Face milling is essential in the production of machine bases, frames, and other structural components that require flat and stable surfaces.

General Manufacturing

Face milling is widely used in general manufacturing for creating flat surfaces on a variety of parts, including molds, dies, and tooling.

Conclusion

Face milling is a critical machining process that enables the creation of flat, precise, and high-quality surfaces on workpieces. Its versatility, efficiency, and ability to produce excellent surface finishes make it indispensable in various industries. By understanding the principles and advantages of face milling, manufacturers can optimize their machining processes and achieve superior results in their production operations.
