How to optimize injection molding process parameters to reduce the reject rate

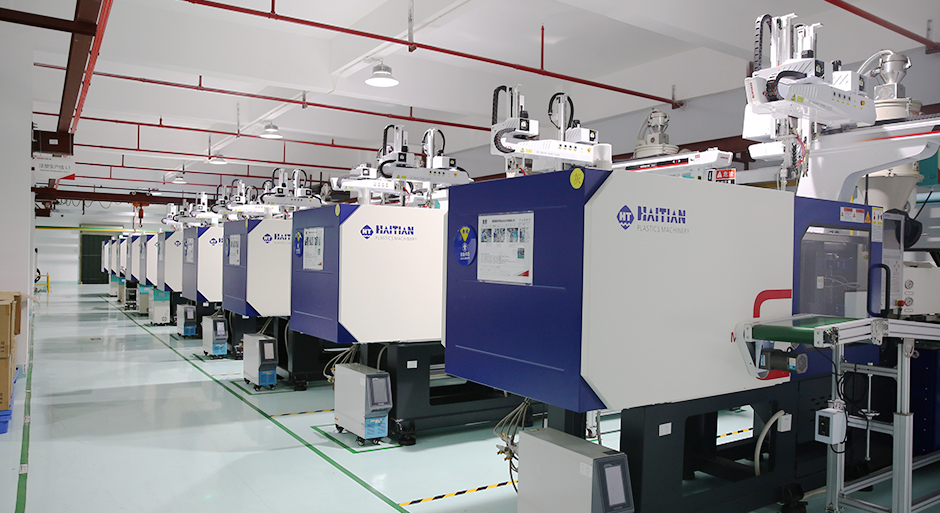

The injection molding process melts plastic, injects it into molds under pressure, cools and solidifies, then ejects to form precise, consistent parts efficiently.
Table of Contents
1. Understanding Injection Molding Process Fundamentals
Injection molding melts polymer granules and injects them into a mold under high pressure. The cycle includes filling, packing, cooling, and ejection. Defects arise when parameters misalign with material behavior or part geometry. For example:
-
Inconsistent melt viscosity causes flow marks.
-
Rapid cooling induces residual stress (warping).
Key Insight: Precision control of temperature, pressure, time, and speed is non-negotiable.
2. Critical Parameters & Their Impact on Defects
Optimize these core parameters to target specific defects:
| Parameter | Defect Addressed | Optimal Adjustment |
|---|---|---|
| Melt Temperature | Sink marks, discoloration | ±5°C from material supplier’s recommendation |
| Injection Speed | Burn marks, jetting | High speed for thin walls; low for complex geometries |
| Holding Pressure | Voids, shrinkage | 50–80% of injection pressure; adjust via gate seal study |
| Cooling Time | Warping, dimensional instability | Calculate via thermal diffusivity (e.g., ±10% per 1mm wall thickness) |
| Back Pressure | Air traps, inconsistent melt | 5–20 bar; higher for homogenization |
Pro Tip: Use DOE (Design of Experiments) to map interactions between parameters.
3. Step-by-Step Optimization Strategy
Follow this workflow to minimize rejects:
-
Baseline Analysis:
-
Record initial parameters, reject rate, and defect types (e.g., 15% short shots).
-
Conduct viscosity testing for material batch consistency.
-
-
Parameter Tuning:
-
Ramp injection speed to avoid shear-induced degradation.
-
Gradual pressure transfer from injection to holding phase (prevents over-packing).
-
-
Validation & Control:
-
Implement IoT sensors for real-time pressure/temperature monitoring.
-
Use statistical process control (SPC) charts to track CpK (process capability).
-
-
Sustainability Loop:
-
Recycle >95% of sprue/runner material into production.
-
Report energy savings via machine-hourly rate (MHR) tracking.
-
4. Cost Breakdown: How Optimization Lowers Expenses
Reject reduction slashes costs across these areas:
| Cost Component | Pre-Optimization | Post-Optimization | Savings Driver |
|---|---|---|---|
| Material Waste | 12–18% | 4–6% | Reduced short shots/shrinkage |
| Energy Consumption | $0.25/part | $0.18/part | Shorter cycle times (±15% cooling) |
| Labor & Rework | 10–15 man-hrs/week | 2–4 man-hrs/week | Fewer manual inspections |
| Machine Downtime | 8–10% | 2–3% | Consistent parameter stability |
| Total Cost/Part | $1.75 | $1.20 | 31% reduction |
Table Notes: Data based on 10,000-part ABS production runs. Savings scale with volume and part complexity.
5. Partnering for Success: Our Technical Expertise
As your manufacturing partner, we deploy:
-
Moldflow Simulation: Predict flow lines, cooling stresses, and clamp forces upfront.
-
Scientific Molding: Certify processes using pressure decay tests and rheology curves.
-
Closed-Loop Systems: Automate adjustments via hydraulic/pressure transducers.
Client Case: Reduced automotive connector reject rate from 12% → 1.8% in 3 weeks through cavity pressure profiling.
Conclusion
Optimizing injection molding parameters isn’t guesswork—it’s engineering rigor. By targeting material behavior, leveraging data, and controlling variables, reject rates plummet while margins climb. Ready to transform your yield? [Contact our team] for a process audit and cost-savings forecast.
About the Author:
With 10+ years in injection molding sales engineering, I help clients achieve <2% reject rates across medical, automotive, and consumer goods sectors. Partner with us for ISO 9001-certified production.
